Selecting the wrong grinding tool does more than reduce efficiency; it introduces severe safety risks, accelerates consumable wear, and compromises the structural integrity of the workpiece. Fabrication shops, metalworkers, and industrial operators frequently face bottlenecks when matching grinding equipment to specific applications—specifically balancing heavy material removal against precision internal finishing and navigating tight spatial constraints. Using an angle grinder where a linear tool is needed destroys delicate components. Forcing a linear tool to do heavy surface leveling wastes time and burns out motors. This guide provides a technical evaluation framework to differentiate between linear and right-angle grinding mechanics, ensuring procurement and operational decisions align with production requirements, material densities, and safety standards.
Mechanical Orientation & Ergonomics: Angle grinders utilize a perpendicular gear system optimized for lateral sweeps and high-torque surface work. A straight grinder uses a direct-drive linear shaft designed for high-RPM precision and inline, thrust-based pressure.
Application Specificity: Angle grinders dominate heavy material removal, weld blending, cutting, and masonry work. Straight grinders excel in internal pipe grinding, die work, and intricate metal deburring.
Tooling Differences: Angle grinders rely on large-diameter discs and wheels; a straight grinding machine utilizes shank-mounted accessories like carbide burrs, mounted stones, and small flap wheels.
Safety & Control: Straight grinders offer superior control in confined spaces, while angle grinders require strict kickback management due to their rotational mass, torque, and the specific shatter risks of cut-off wheels.

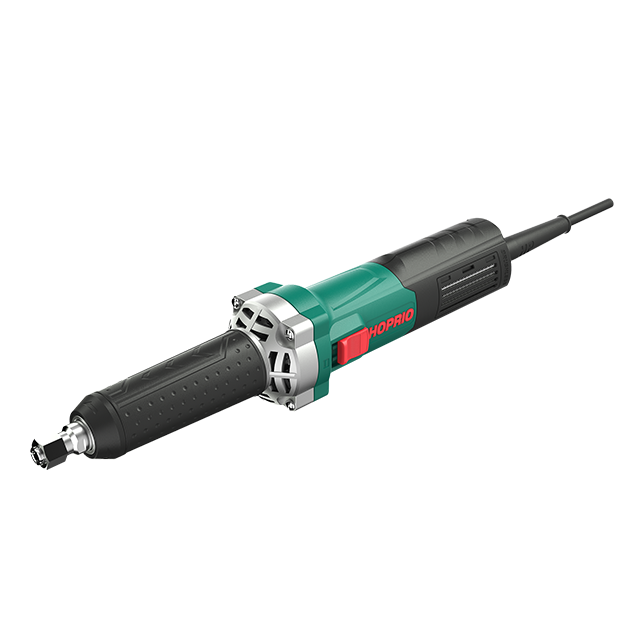

A Straight Grinder features a direct-drive linear mechanism. The collet aligns directly with the motor shaft, creating a seamless transfer of power without directional shifts. Energy moves straight from the armature to the cutting accessory. This direct connection minimizes mechanical energy loss and reduces the number of internal moving parts. You get immediate throttle response and consistent power delivery right at the tip of the burr. Angle grinders use a complex spiral bevel gear system. The spindle sits at a 90-degree angle to the motor housing. This gear reduction trades rotational speed for raw torque. The pinion gear drives a larger crown gear to change the rotational axis. Straight grinders maintain a 1:1 drive ratio, maximizing speed for precision tasks. Fewer moving parts mean less internal friction and lower heat generation during extended grinding sessions on the shop floor.
Rotational speed defines the capability of any abrasive tool. Straight grinders operate at exceptionally high RPMs, frequently reaching speeds up to 25,000 RPM or more. This high speed maintains the necessary surface feet per minute (SFPM) on small-diameter accessories. Small tungsten carbide burrs need massive RPM to cut metal effectively without grabbing or bouncing off the workpiece. Angle grinders operate at significantly lower RPMs. Standard models run between 7,000 and 11,000 RPM. However, they deliver the high torque necessary to drive large 4.5-inch to 9-inch discs. They push these wide abrasives through dense materials without bogging down under heavy physical loads. High torque prevents the disc from stalling when you press it hard against a structural steel beam. If you put a large disc on a high-RPM tool, centrifugal force would shatter it instantly. Tool engineers balance RPM and torque to match the specific accessory diameter and the intended material removal rate.
Tool geometry dictates how your body interacts with the workpiece. The inline design of a straight grinder allows operators to apply direct, forward thrust. Your arm, wrist, and the tool form a single straight line. This posture is ideal for pushing the tool into cylinders, pipes, or deep channels. You drive the tool straight ahead like a drill, using your body weight to maintain steady pressure. Angle grinders leverage downward and lateral force. You sweep them across broad, flat, or convex surfaces. The perpendicular handle placement stabilizes the tool during aggressive side-to-side movements. You use your core and shoulders to guide the heavy disc. The side handle provides a secondary pivot point, helping you resist the rotational pull of the large grinding wheel. Using an angle grinder requires a wide stance and firm two-handed grip. Linear tools allow for more nuanced, pencil-like control in tight areas.
| Mechanical Feature | Straight Grinder | Angle Grinder |
|---|---|---|
| Drive Mechanism | Direct-drive linear shaft | Spiral bevel gear (90-degree) |
| Operational Speed (RPM) | Very High (up to 25,000+) | Moderate (7,000 - 11,000) |
| Torque Output | Lower (relies on speed to cut) | Very High (prevents stalling) |
| Primary Force Direction | Forward thrust / Inline | Lateral sweep / Downward pressure |
| Accessory Mounting System | Collet chuck (shanked accessories) | Threaded arbor (discs and wheels) |
We need to clarify industry terminology to avoid procurement mistakes on the shop floor. A standard Straight Grinding Machine is a large, robust tool built for heavy internal work. It requires two hands for safe operation due to its powerful motor and the aggressive nature of the large burrs it drives. Die grinders are smaller, one-handed versions used for light detailing, polishing, and gasket removal. You will also see "right-angle die grinders" on the market. These exist for tight-space lateral work inside engine bays or small enclosures. They combine a small body with a 90-degree gear head. However, a true straight grinder provides superior control for inline pressure. It excels in deep-reach applications where a right-angle head would physically block access to the back of a pipe or channel.
A Metal Straight Grinder excels in specific, high-precision tasks where bulk removal tools fail. Success criteria include internal pipe cleaning, cylinder porting, and smoothing inside corners on custom fabrications. Operators use them to remove heavy burrs from freshly machined parts before assembly. These tools are absolutely necessary in tool and die making, where molds require exact dimensional tolerances. Aerospace components and precision metalworking also rely heavily on them for finishing complex geometries. Right-angle tools simply cannot physically fit into these tight spaces, nor do they offer the finesse required for intricate metal removal. Foundry workers use linear grinders to clean up metal castings and remove flashing. Pipeline welders use them to prep internal pipe bevels before laying a root pass. The inline shape allows the operator to see exactly where the burr contacts the metal, providing a clear line of sight down the barrel of the tool.
Standard operating procedures for internal pipe preparation using a linear grinder include:
Secure the pipe in a chain vise to prevent rolling during heavy thrust application.
Select a double-cut carbide burr for steel or a single-cut aluminum burr for softer alloys to prevent loading.
Insert the burr shank fully into the collet, leaving no more than 1/2-inch of overhang to prevent shank bending.
Bring the tool up to full RPM before making contact with the internal pipe wall.
Apply steady, forward pressure, moving the tool in a circular motion to blend the internal diameter evenly.
Allow the RPM of the tool to do the cutting; forcing the burr will cause it to chatter and leave a rough finish.
Pneumatic straight grinders historically dominated industrial fabrication shops. Their lightweight builds and continuous duty cycles made them standard equipment on assembly lines. Air tools do not overheat, making them ideal for multi-shift operations where the tool runs constantly. However, the modern industrial shift heavily favors the cordless Brushless Straight Grinder. These advanced battery-powered tools sustain RPM under heavy physical loads, unlike older brushed models that bog down. They eliminate carbon brush maintenance completely, keeping the tool on the floor and out of the repair shop. Improved thermal management prevents the motor from overheating during extended use on dense metals. Furthermore, removing air hoses eliminates severe trip hazards on the shop floor and stops the constant drag on the operator's wrist. Cordless tools allow maintenance crews to perform repairs in remote areas, high on scaffolding, or deep inside tanks. You no longer need to drag heavy air compressors and rigid hoses to the job site. The electronic speed control on brushless models also ensures consistent cutting power regardless of battery depletion.
Straight grinders utilize specific collet sizes to grip accessories securely. The standard sizes in industrial applications are typically 1/4-inch or 6mm. Heavy-duty models may use larger 3/8-inch or 8mm collets to drive massive burrs without snapping the shank under load. You must ensure the accessory shank matches the collet diameter exactly. A loose fit causes dangerous runout, severe vibration, and eventual accessory failure.
Compatible accessories include:
Tungsten carbide burrs for rapid, aggressive metal removal on steel, stainless, and cast iron.
Mounted aluminum oxide grinding stones for smoothing, shaping edges, and removing hard scale.
Cartridge rolls and sanding bands for blending inside diameters and achieving specific scratch patterns.
Wire end brushes for targeted rust, scale, and slag removal inside drilled holes or tight corners.
Felt bobs and polishing compounds for high-gloss finishing on stainless steel food-grade fabrications.
Angle grinders feature an ergonomic design built for two-handed stability. This configuration supports aggressive lateral sweeps across large workpieces like I-beams and steel plates. It allows operators to apply heavy downward pressure without losing their physical balance. The side handle provides a crucial leverage point. This handle helps you control the tool's massive rotational torque when the disc bites into the material. The heavy motor sits parallel to your arms, while the cutting disc spins perpendicularly. This creates a strong gyroscopic effect. The tool naturally wants to pull forward or backward depending on the disc's rotation and the angle of attack. Mastering this tool requires understanding how to lean into the cut safely, using your body weight rather than just arm strength to guide the abrasive.
These tools handle core metal fabrication use cases effortlessly. You use them for cutting thick steel stock, slicing through rebar, and beveling plate edges prior to full-penetration welding. They excel at aggressive weld seam removal, quickly flattening high beads. Shipbuilders use them for large-scale rust or scale removal on hulls before painting. Angle grinders also offer incredible multi-material versatility on job sites. Unlike straight grinders, they frequently pair with specialized masonry accessories. You can mount diamond blades to cut concrete blocks or score expansion joints. You can attach diamond cup wheels to grind down high spots on concrete floors or remove thick epoxies. Masons use them to tuckpoint brick walls, grinding out old mortar. This versatility makes the angle grinder a staple on almost every construction site, handling everything from structural steel to foundation work.
Angle grinders rely on threaded arbors to secure large accessories. Standard arbor sizes are typically 5/8"-11 in North America or M14 in Europe. The locking nut must be tightened with a spanner wrench to prevent the disc from spinning loose under heavy braking.
Compatible accessories include:
Type 27 depressed center grinding wheels (1/4-inch thick) for heavy stock removal and weld blending.
Type 1 and Type 41 thin cut-off wheels (typically .045-inch thick) for slicing through metal framing and sheet goods.
Zirconia or ceramic flap discs for blending, surface finishing, and removing mill scale without gouging.
Knotted wire cup brushes for wide-area rust, paint stripping, and heavy slag removal.
Diamond continuous rim blades for tile, stone, and masonry cutting.
Assess the workpiece geometry carefully before selecting a tool. Use straight grinders for internal diameters (ID). They easily access deep channels, engine cylinders, and tight angles inside custom brackets. These areas require inline reach where a bulky gear head simply will not fit. You can plunge a straight grinder deep into a pipe to clean up a root pass. Use angle grinders for external diameters (OD). They perform best on broad, flat, or convex surfaces like the outside of a tank or a flat steel plate. Lateral movement must be unrestricted to use an angle grinder safely. If you try to force an angle grinder into a tight corner, the spinning disc will catch the adjacent wall. This causes an immediate and violent kickback, ripping the tool from your hands and potentially causing severe injury.
Angle grinders provide maximum material removal rates (MRR). They excel at bulk stock removal on dense steel beams and thick plates. If you need to grind down a massive weld bead quickly or bevel a 1-inch thick plate, choose an angle grinder. It acts as the sledgehammer of the fabrication shop. Straight grinders offer significantly lower MRR but provide superior micro-control. They achieve specific surface finishes on softer metals or precision machined components. You can blend intricate areas without gouging the base material or altering the dimensional tolerances. A die maker uses a straight grinder to adjust a steel mold by fractions of a millimeter. The straight grinder acts as the scalpel, allowing for exact, deliberate material removal.
Address the specific hazards of each tool to mitigate workplace injuries. Angle grinders present severe kickback risks when the disc binds in a cut. Thin cut-off wheels pose a high shatter danger if twisted or pinched. The resulting shrapnel causes catastrophic injuries, which is why guards must never be removed. Flap discs, which use layered sandpaper, offer a much safer alternative for surface blending because they do not shatter. Straight grinders present entirely different risks. Burr snagging occurs if you push the tool too hard into an inside corner, causing the tool to jump violently. Shank bending happens if you run the tool beyond the accessory's rated overhang length or apply too much lateral pressure. Applying improper side-load to an inline tool causes dangerous accessory failure. Operators must wear full face shields, safety glasses, and heavy leather gloves regardless of the tool chosen.
Compare the replacement frequency of accessories to understand operational demands. High-quality carbide burrs for a straight grinder require a specific operating technique. They outlast cheap abrasives significantly when used correctly, but running them at the wrong RPM or on the wrong metal alloy will chip the carbide teeth instantly. Bulk abrasive discs for an angle grinder require frequent replacement as the abrasive grains break down. Using the wrong tool accelerates consumable degradation rapidly. You will glaze a grinding stone by using it on aluminum, filling the pores with soft metal until it stops cutting entirely. You will prematurely wear a flap disc by running it against a sharp, jagged edge, tearing the abrasive flaps off the backing pad. Proper operator training prevents this unnecessary waste. Matching the abrasive grit, bond hardness, and tool RPM to the specific metal alloy keeps the shop running efficiently.
Evaluate the durability of the tool mechanics to plan for routine maintenance. The angle grinder's gear head requires periodic repacking with specialized high-temperature grease. It is highly susceptible to fine metallic dust ingress, which acts as a lapping compound and destroys the bevel gears over time. The direct-drive simplicity of the straight grinder reduces these mechanical failure points. There are no bevel gears to strip out under heavy loads. Battery-powered brushless tools offset long-term maintenance demands. They eliminate the need to oil air tools daily, drain water from compressor tanks, or rebuild frozen pneumatic motors. Keeping the air vents clear of metal shavings and ensuring the collet is free of debris are the primary maintenance requirements for a modern brushless linear grinder.
The choice between a straight grinder and an angle grinder is dictated by workpiece geometry, material density, and the required material removal rate. It is not about operator preference. They are complementary assets in a fabrication environment, not interchangeable tools. Specify an angle grinder for structural fabrication, cutting, masonry, and heavy surface preparation. Specify a metal straight grinder for precision internal grinding, die modification, and confined-space inline deburring.
Follow these next steps to optimize your grinding operations:
Audit your current metalworking applications to identify specific spatial bottlenecks and tool access issues on the shop floor.
Review your facility's power infrastructure to choose effectively between pneumatic systems or modern cordless brushless models.
Standardize your shop's collet and arbor sizes before procuring new equipment to minimize consumable mismatch and prevent accessory runout.
Implement strict safety training focused on kickback management, proper guard usage, and accessory RPM limits for all operators.
Establish a routine maintenance schedule to inspect collets for wear, blow out motor vents, and repack angle grinder gearboxes.
A: They share the same inline mechanics, but the terminology differs by scale. A "straight grinder" often refers to larger, higher-torque industrial tools designed for heavy internal work and driving large burrs. A "die grinder" typically refers to smaller, high-RPM tools used for intricate detailing, polishing, and light deburring with small accessories.
A: A straight grinder applies pressure linearly. It is best for deep, internal reach and thrust-based applications inside pipes. A right-angle die grinder uses a 90-degree head on a small body. It offers the tight-space maneuverability of a die grinder combined with the lateral ergonomics of an angle grinder for side-to-side sweeping.
A: While small cut-off wheels exist for straight grinders, it is highly inefficient and dangerous. Compared to an angle grinder, a straight grinder lacks a proper guard, delivers lower torque, and provides poor leverage for perpendicular cuts. Always use an angle grinder equipped with a Type 1 or Type 41 guard for cutting metal stock.

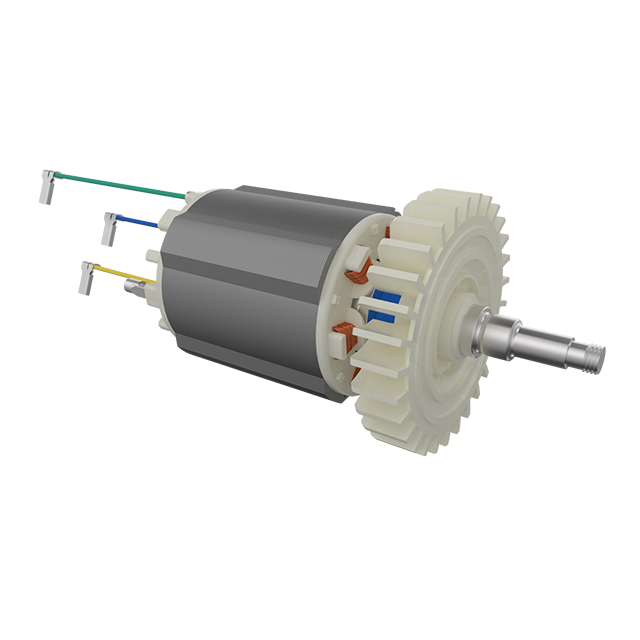

A: Brushless motors eliminate carbon brush friction, which significantly reduces heat buildup and maintenance requirements. They deliver sustained RPM under heavy loads and offer superior energy efficiency. This translates to longer battery life, consistent cutting power, and extended tool longevity in demanding industrial environments.
A: Most industrial straight grinders utilize a 1/4-inch or 6mm collet system. Heavy-duty models may also feature 3/8-inch or 8mm collets to accommodate larger shank accessories. Always verify that your carbide burrs and mounted stones match the exact collet size to prevent dangerous accessory runout and severe vibration.
