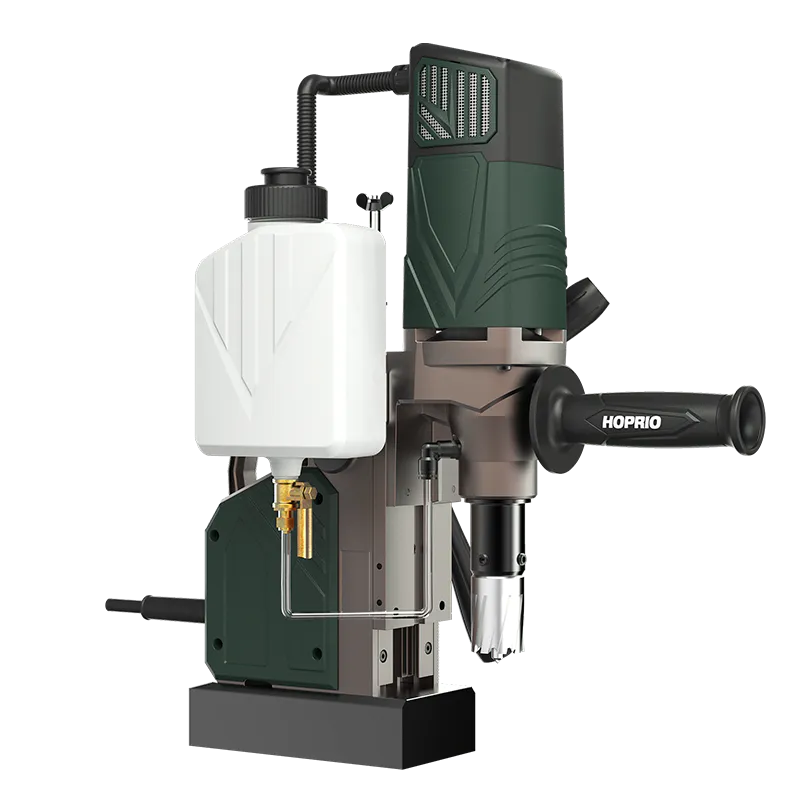

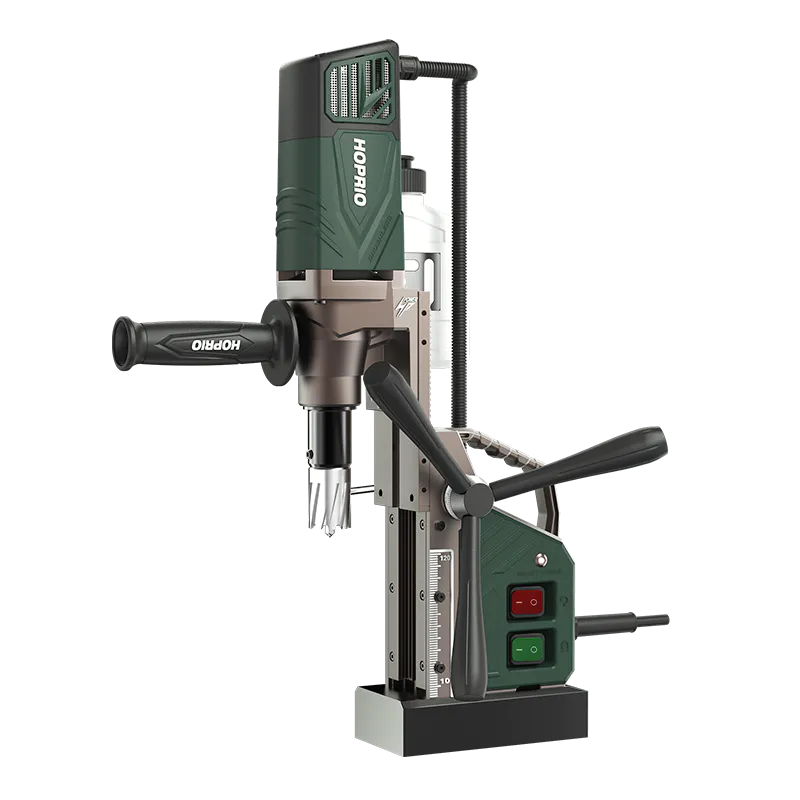

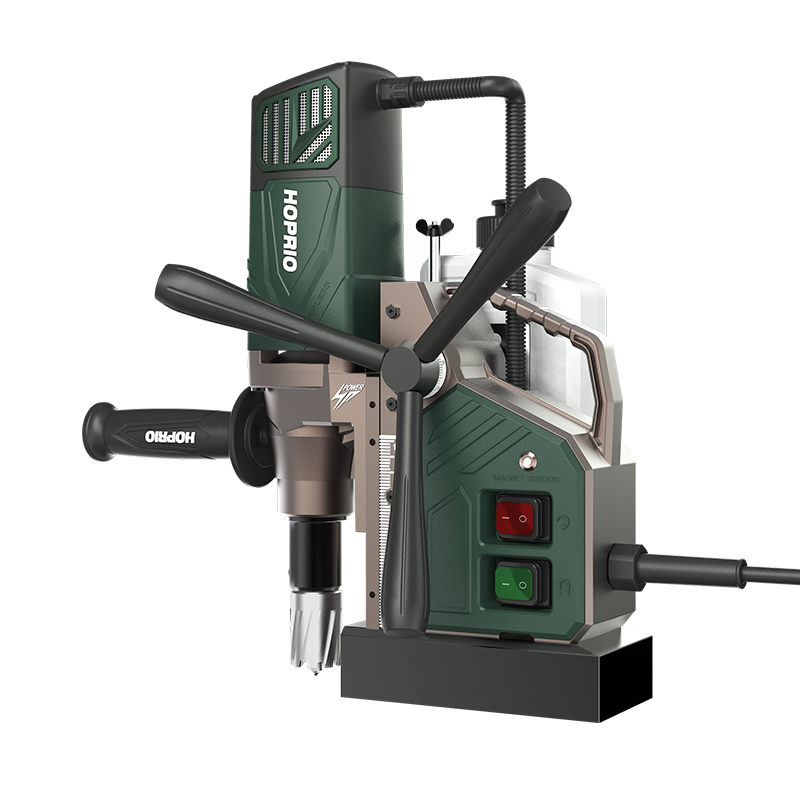

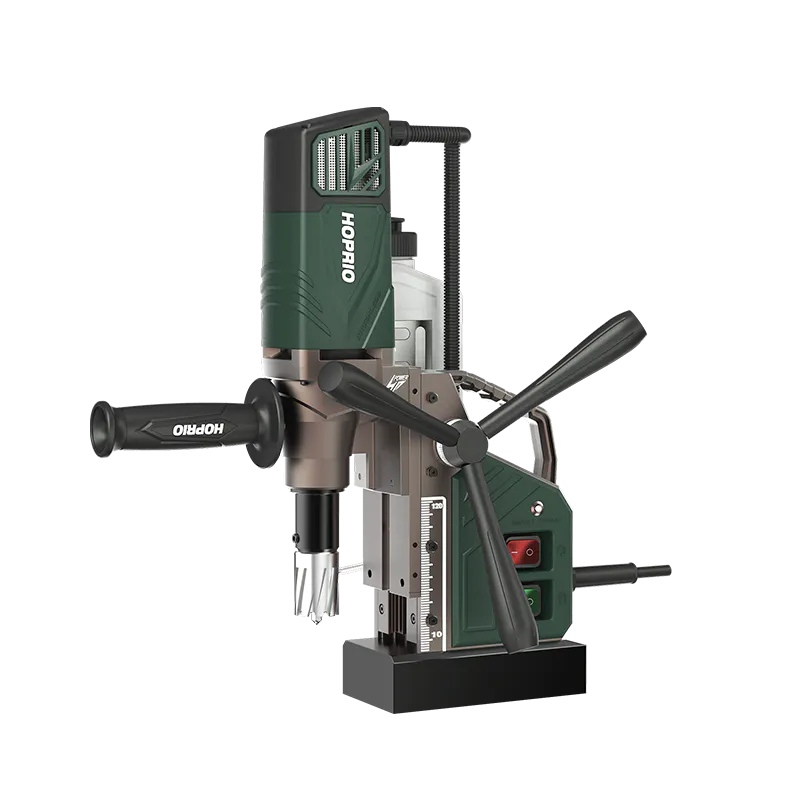

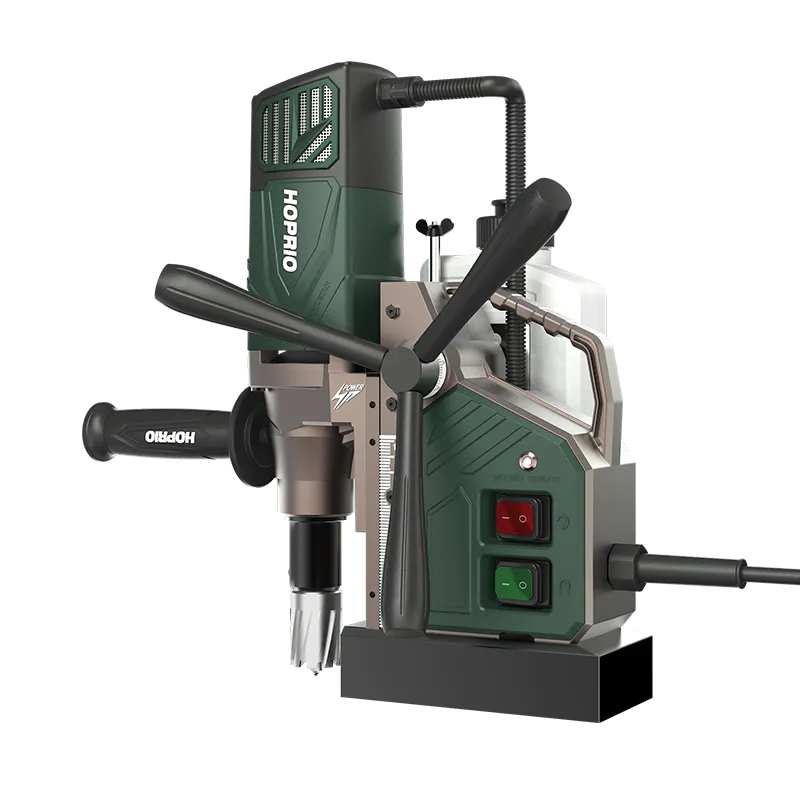

When outfitting a fabrication floor or a demanding construction site, the equipment you select directly impacts both project timelines and operator safety. The Brushless Corded Magnetic Drill Machine is engineered to deliver unwavering performance in the most challenging metalworking environments. From the moment the electromagnet engages with a reassuring, solid metallic clunk, operators experience a secure foundation that defies gravity and vibration. Driven by a formidable 1600W power plant, this unit effortlessly bites through thick steel plates and heavy structural beams. The smooth, consistent hum of the motor under load signifies a tool built for endurance, designed to eliminate the frustrating stalls and erratic speeds that plague lesser equipment. By integrating advanced motor technology with heavy-duty mechanical construction, this drill transforms strenuous hole-making tasks into a highly controlled, predictable, and efficient process, ensuring your operational output remains consistently high shift after shift.
| Item No.: | J1C-35YE1 | No-load speed | 600rpm |
| Voltage : | 220VAC | Stroke | 220mm |
| Frequency: | 50HZ | Hole diameter | φ12-φ35mm |
| Rated power | 1600W | Hole depth | max50mm |
| Twist Drill | maxφ16mm | Suction | ＞10000N |
| Connector | φ19.05mm | Function | Constant power ,constant speed soft start ,power-off protection ,over-load protection |
At the heart of this drilling apparatus lies a highly efficient 1600W brushless motor, engineered specifically to handle continuous, heavy-load operations without breaking a sweat. Unlike traditional motors, this advanced drive system maintains a constant power output and a steady 600rpm no-load speed, even as the drill bit bites deeper into dense metal alloys. This consistency prevents the bit from binding or glazing the material, resulting in cleaner, more accurate holes. Complementing this raw power is an industrial-grade magnetic base that generates a formidable suction force exceeding 10000N. When activated, the base anchors the machine with absolute rigidity, providing a rock-solid platform whether you are drilling horizontally on a workbench, vertically against a steel column, or even in inverted positions. This unyielding stability is crucial for maintaining the integrity of the drill bit and ensuring the safety of the operator during intense fabrication tasks.
Achieving exact tolerances is non-negotiable in structural engineering. This machine is equipped with features that guarantee precision while prioritizing operator well-being:
Expansive Drilling Capacity: Capable of producing holes from φ12mm up to φ35mm in diameter, with a maximum depth of 50mm, accommodating a wide array of fastening requirements.
Extended Stroke Length: The generous 220mm stroke allows for deep, continuous penetration and provides ample clearance for easy bit changes and chip evacuation.
Intelligent Soft Start: The motor initiates rotation smoothly, eliminating sudden, jarring kickbacks that can misalign the tool or strain the operator's wrists.
Comprehensive Protection: Integrated power-off and over-load protection circuits actively monitor the machine's status, instantly halting operation if abnormal resistance is detected, thereby preventing motor burnout and shielding the user from potential hazards.
The shift to a brushless motor architecture fundamentally changes the maintenance equation for this equipment. By eliminating carbon brushes—a component notorious for wearing out and requiring frequent replacement—the internal mechanics run cooler and cleaner. There is no carbon dust buildup to compromise electrical contacts, and the overall friction within the motor housing is drastically reduced. Encased in a rugged, impact-resistant outer shell, the machine is built to shrug off the inevitable bumps, abrasive dust, and rough handling typical of active job sites. This meticulous attention to durability translates directly into maximized uptime, ensuring the tool remains in active service rather than sitting on a repair bench.
This magnetic drill is purpose-built for environments where compromise is not an option. It thrives in heavy structural steel fabrication, where erecting massive frameworks demands hundreds of perfectly aligned holes. Bridge construction teams rely on its portability and immense magnetic grip to perform on-site modifications high above the ground. Similarly, in shipbuilding and heavy equipment manufacturing, the ability to bring a powerful, precise drilling solution directly to the workpiece—rather than moving massive metal plates to a stationary drill press—streamlines the entire production workflow and accelerates project completion. Whether operating in a sprawling manufacturing facility or braving the elements on an exposed architectural build, the rugged construction ensures consistent performance regardless of the ambient conditions.
Procuring industrial machinery is an investment in your operational capacity, and it requires assurance that goes beyond the hardware itself. This drill is backed by a comprehensive warranty program tailored for professional and enterprise-scale users. Our dedicated technical support team provides expert guidance on optimal usage, maintenance schedules, and troubleshooting, ensuring your operators can maximize the machine's lifespan. Furthermore, a responsive service network guarantees that replacement parts and expert assistance are readily accessible, minimizing any potential disruptions to your critical production schedules. We understand that in heavy industry, time is a tangible asset. Therefore, our commitment extends to providing rapid-response solutions and detailed operational documentation, empowering your maintenance teams to keep the equipment running at peak efficiency year after year.
