PAG125-06316
Raiyon/OEM
| Quantity: | |
|---|---|

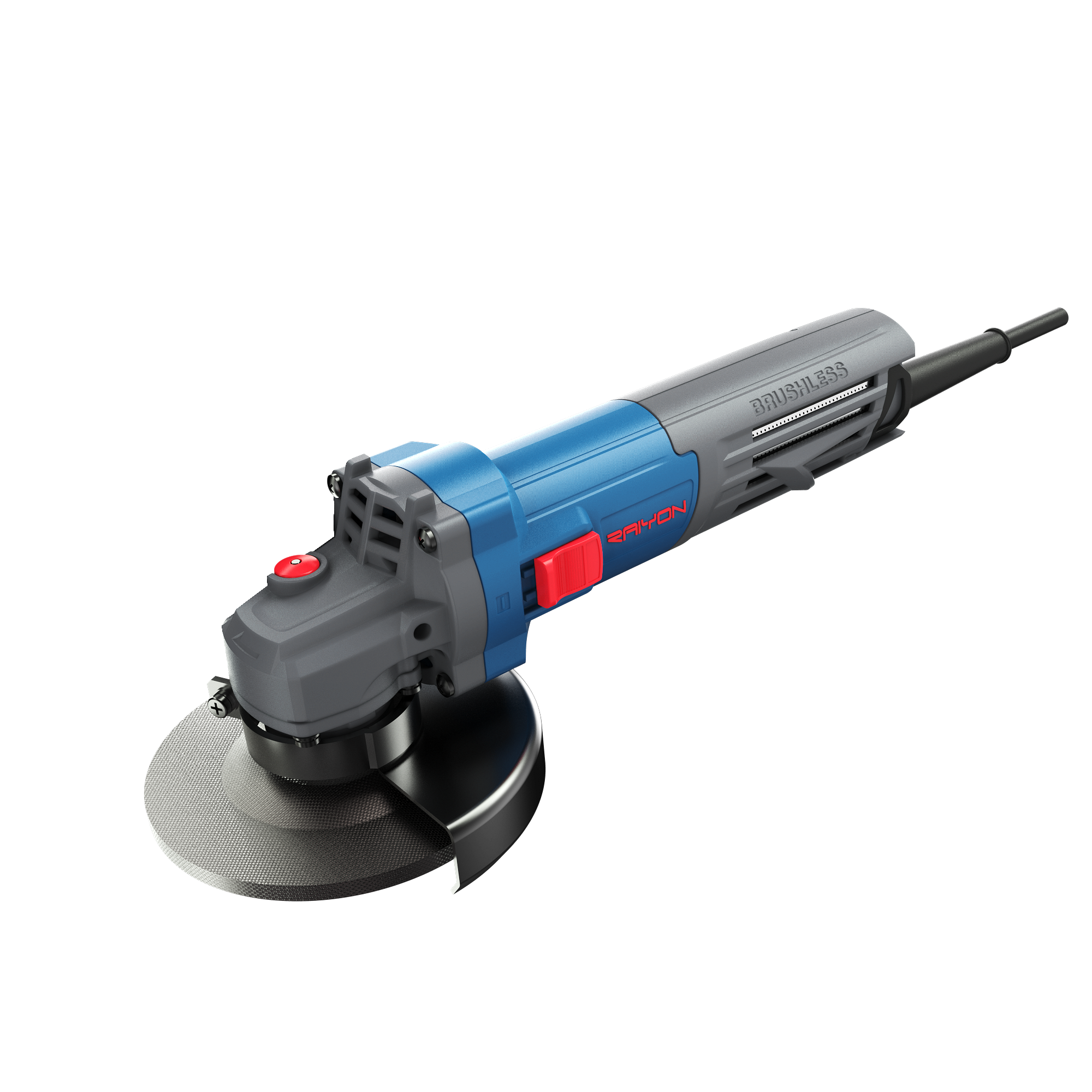

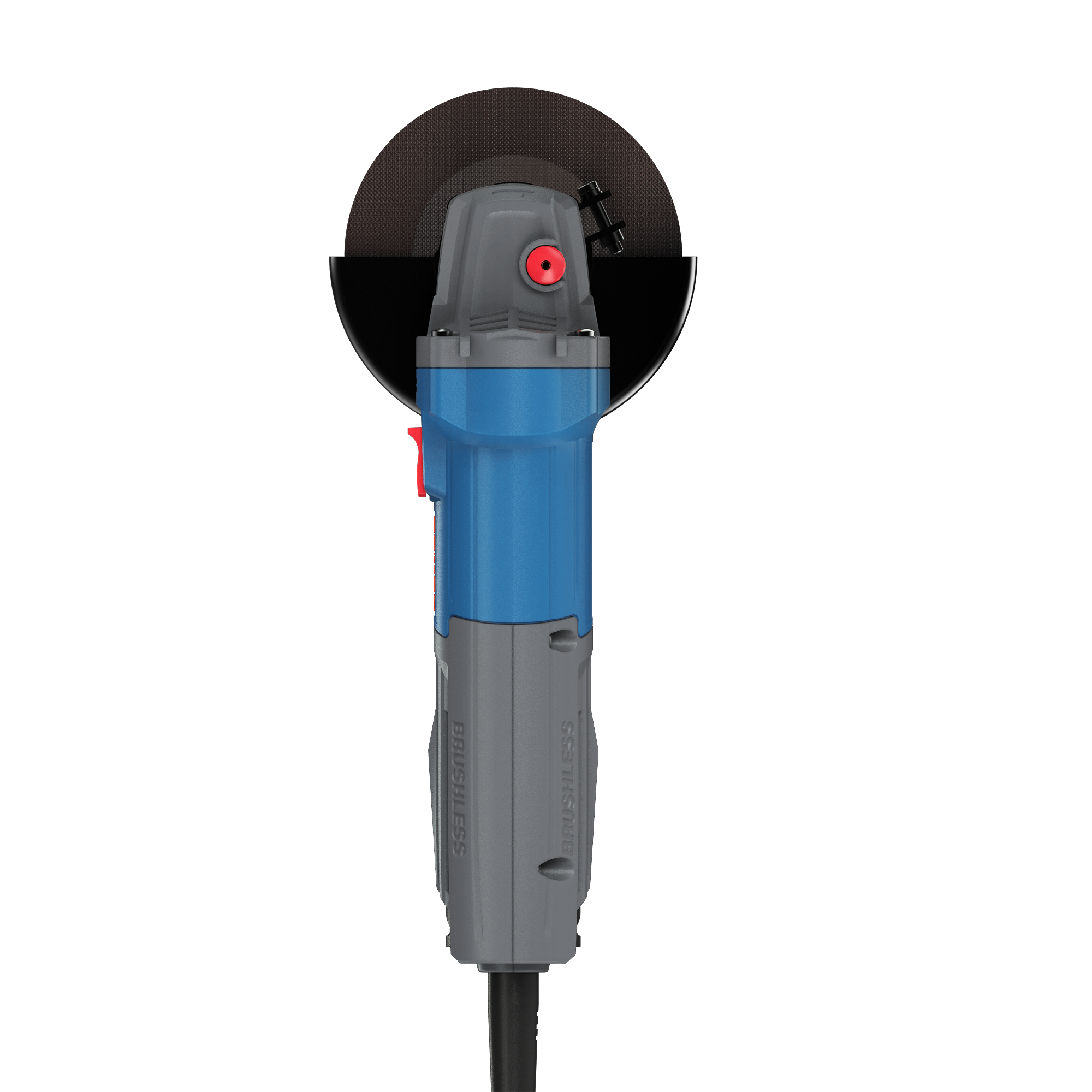

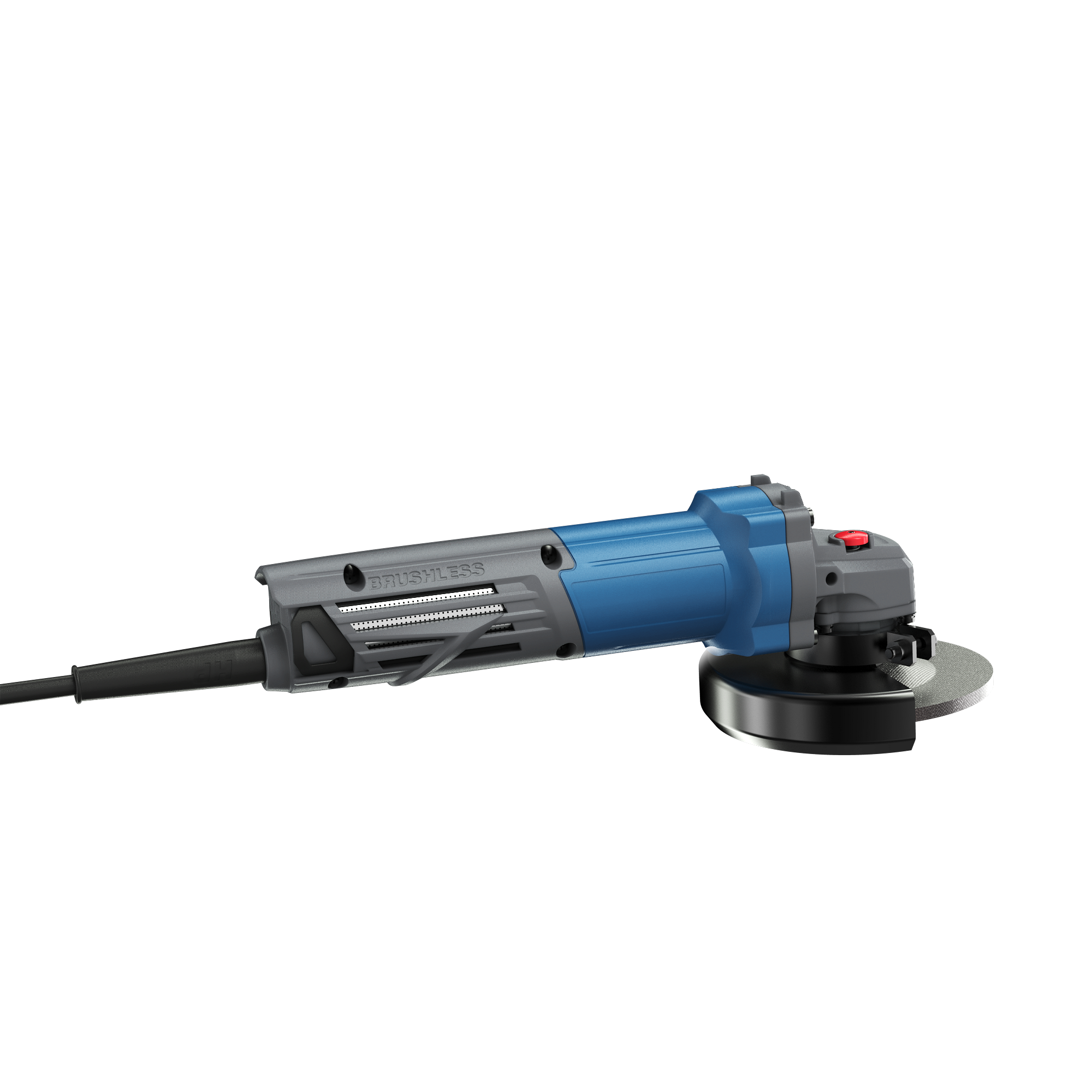

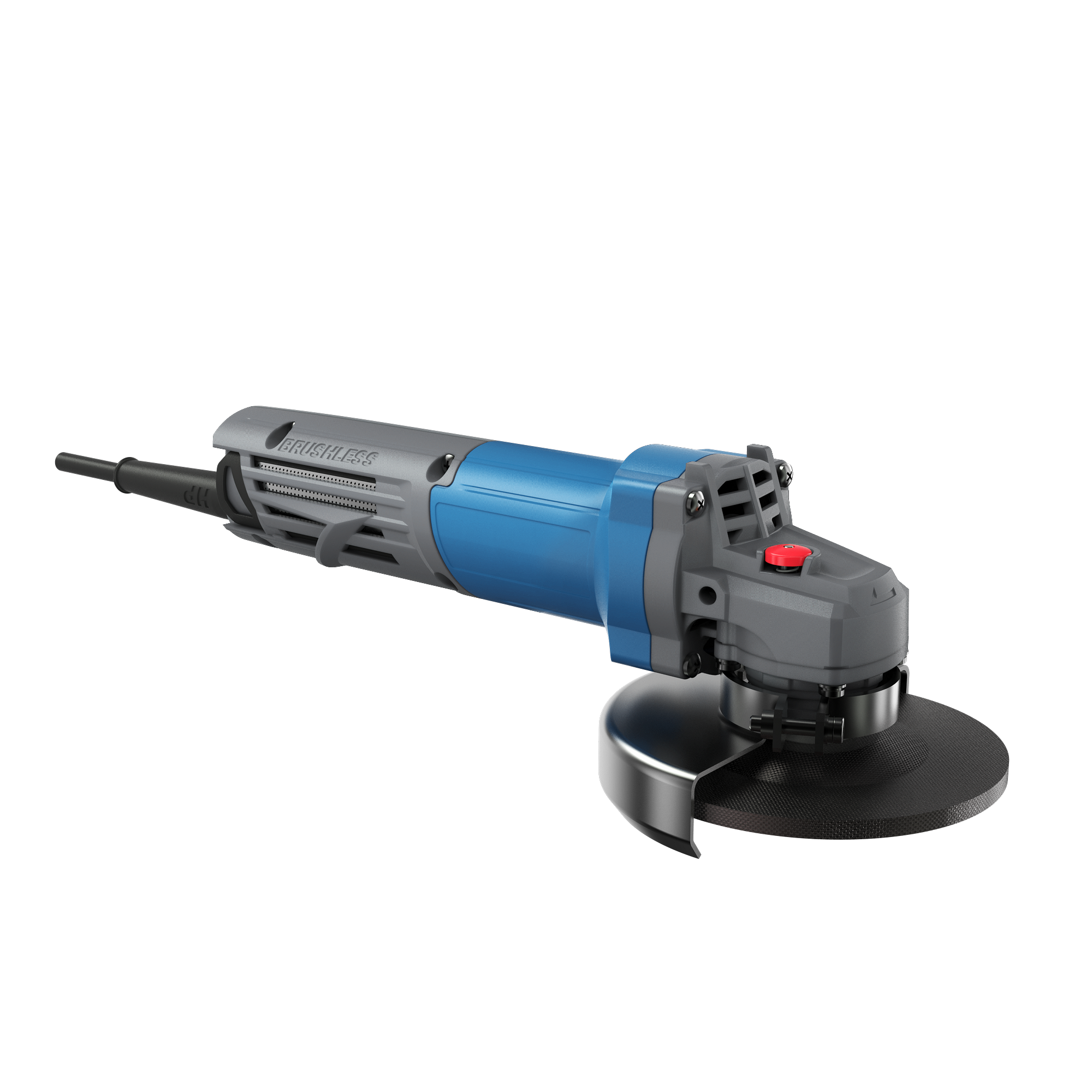

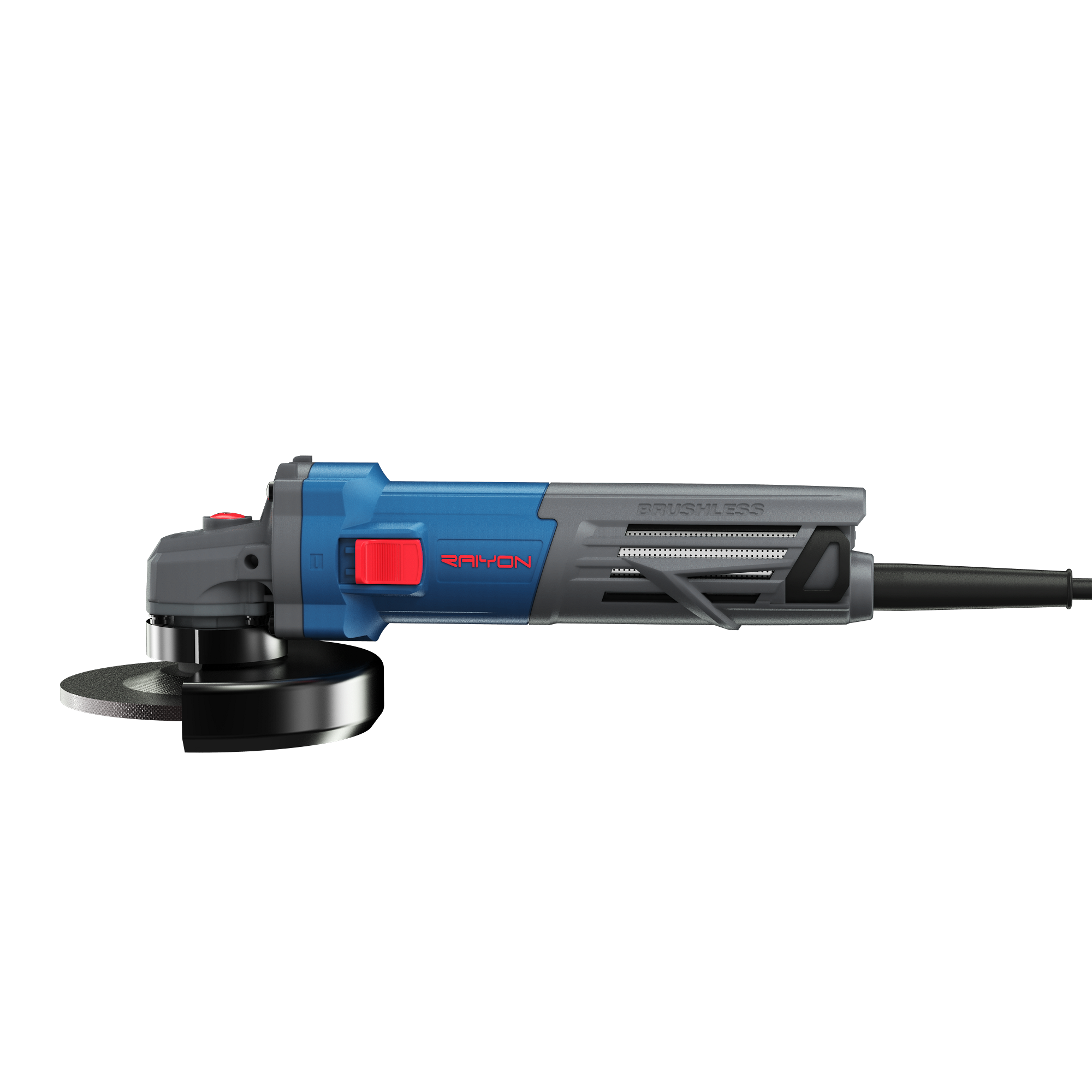

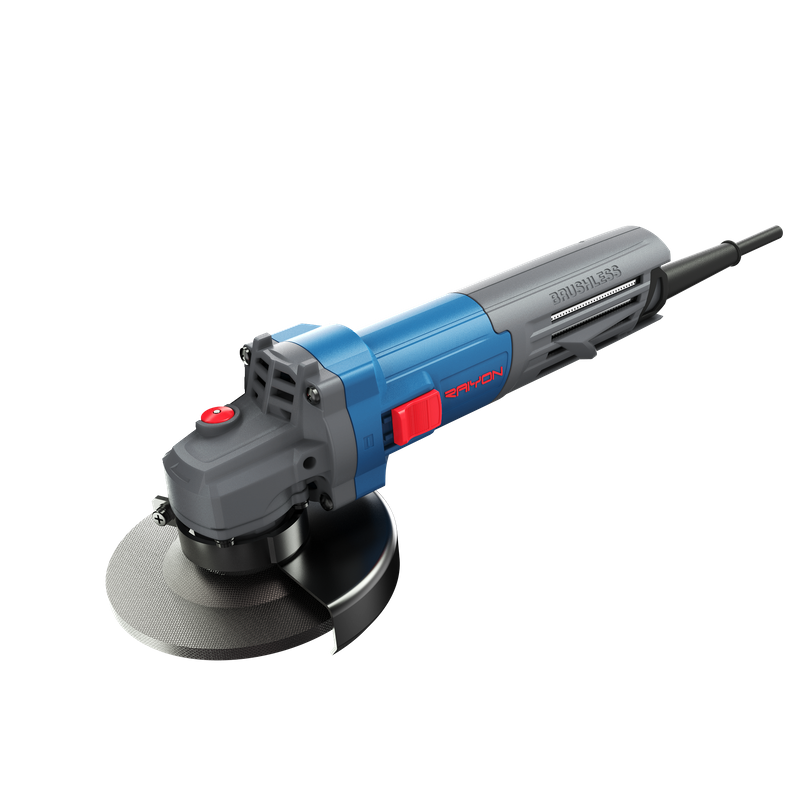

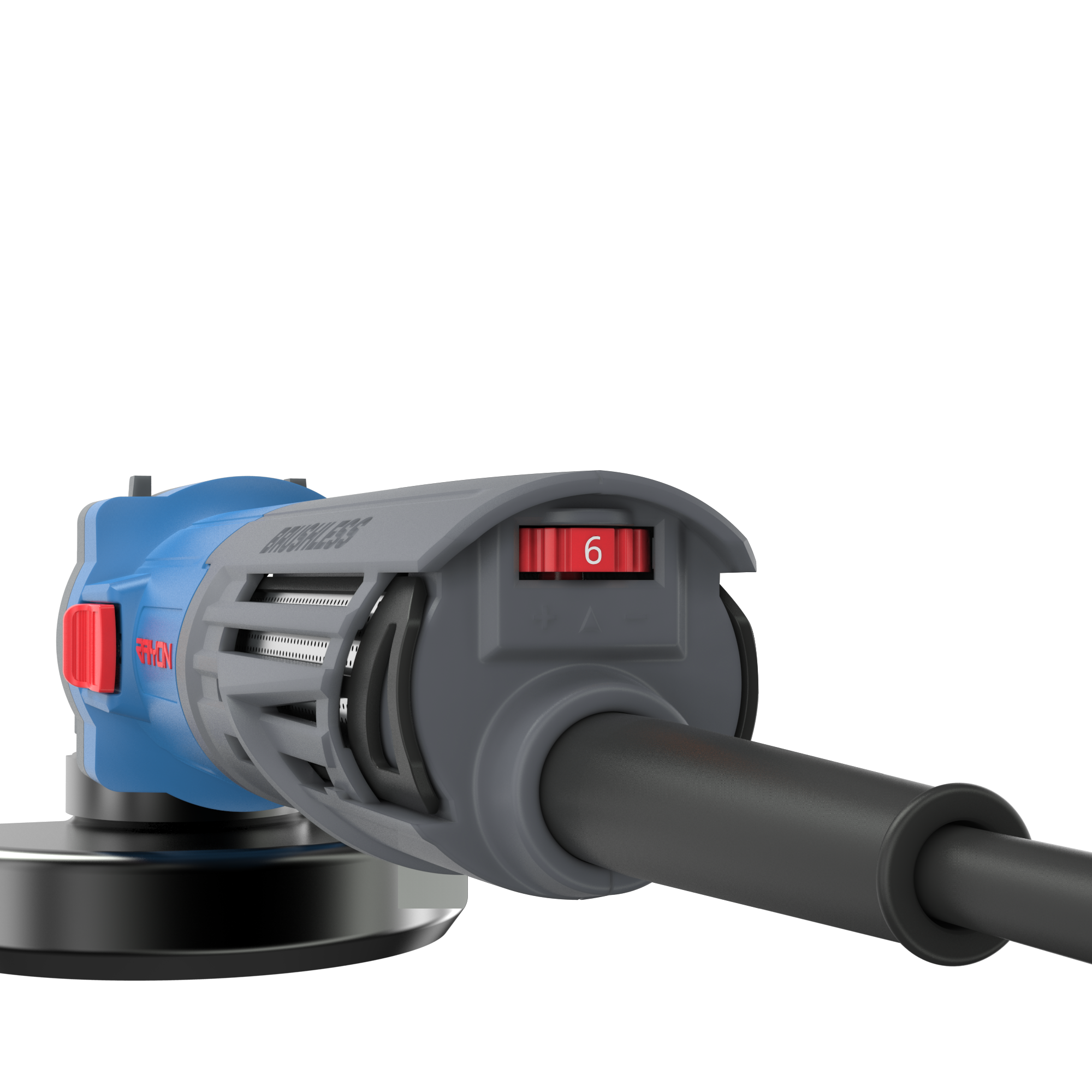

RAIYON PAG125-06316 is a 125mm (5”) AC brushless angle grinder designed to outperform traditional brushed models in efficiency, lifespan, and overall reliability. Whether you are working with metal, stone, or concrete, this grinder provides a smart upgrade for your workshop or job site.
Specifications
Voltage | 220-240V |
Frequency | 50-60Hz |
Rated Power | 1200W |
Max Input Power | 1900W |
No‑load Speed | 3000 – 100 00 RPM (6 speeds) |
Disc Diameter | 125mm (5”) |
Spindle Thread | M14 |
Weight | 1.6KG |
*Note: The PAG125-06310 is the single‑speed version.*

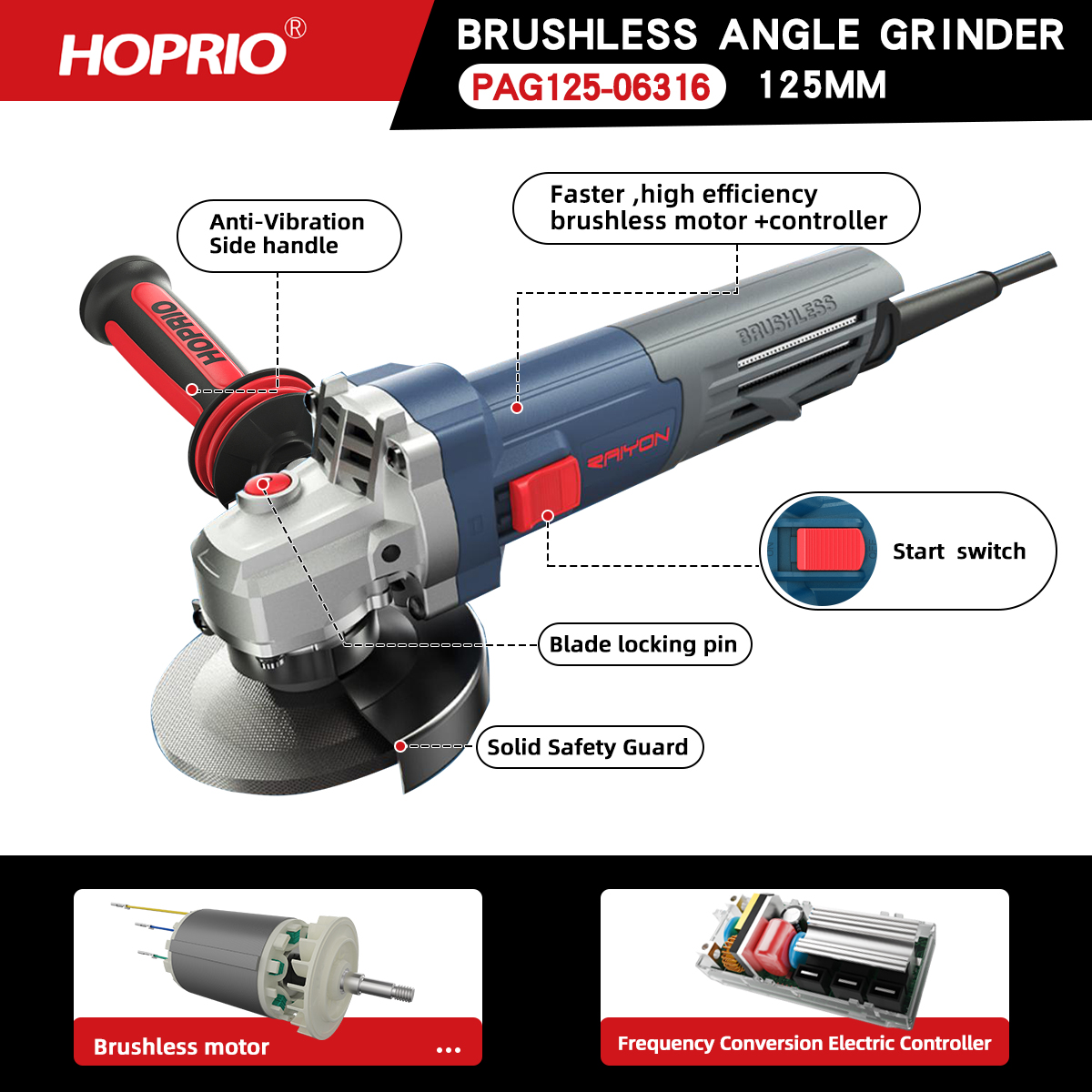

Powerful Brushless Motor – More Efficiency, Less Waste
At the core of the PAG125-06316 is a high‑quality brushless copper motor. Unlike conventional brushed motors (which suffer from carbon brush wear, sparking, and heat buildup), the brushless design offers:
- No carbon brushes – maintenance free operation
- No sparking – safer for flammable environments
- No burnout – runs cooler and longer even under heavy load
The motor delivers 1200W of rated power with a maximum power of 1900W and a rated speed of 10,000 RPM. This translates into cutting speed that is double that of a brushed angle grinder and grinding speed that is 35% faster, while saving up to 40% of grinding discs due to more efficient energy transfer.
Military‑Grade Gears – Built to Last
RAIYON has equipped the PAG125-06316 with military‑grade gears designed for high coincidence engagement, ensuring simultaneous clutching of more than two gear sets. This results in smooth power transmission and an exceptionally long service life – continuous operation exceeding 10,000 hours.
Smart Electronic Controller – Full Safety Protection
The PAG125-06316 features an anti‑restart electronic controller with full automatic control integration. The built‑in protection systems include:
Soft start – eliminates sudden kickback for safe, smooth startups
Power‑off protection – prevents automatic restart after unexpected power loss
Overload protection – cuts power when the load exceeds safe limits
Overheat protection – shuts down the motor to prevent damage from excessive temperature
Undervoltage protection – safeguards the motor against voltage fluctuations
These intelligent features not only protect the user but also extend the tool’s lifespan and reduce downtime.
Applications
RAIYON PAG125-06316 is ideal for:
- Metal grinding and cutting
- Surface rust removal and weld preparation
- Stone and concrete cutting
- Stainless steel finishing
- General fabrication and maintenance tasks
