1600W Heavy Duty Brushless Corded Magnetic Drill High Efficiency Electric Automatic Magnetic Drill Machine

Industrial Grade Brushless Magnetic Drill Machine

Color: Green (MOQ: 500PCS can customize )
Max Power: 3100W
Max Current : 16A
Max Drilling Depth: 50mm
Motor: HOPRIO Brushless motor(HPBL: 7245)
with the powerful brushless motor, efficiency increased more than 50%, life-time increased by 40%, very suitable for industrial and heavy duty work.
More then 10000N strong suction, securely during operation.

  • J1C-35YE1

  • Hoprio/OEM

Availability:
Quantity:


Hoprio Brushless Magnetic Drill J1C- 35YE1 delivers a significant upgrade in performance, offering substantial improvements in drilling efficiency, speed, magnetic hold, and operational lifetime over traditional models. Designed with advanced technology, it enhances productivity and reliability in demanding industrial applications.

Enhanced Efficiency
Utilizing a brushless motor, Hoprio Magnetic Drill increases efficiency by over 30% compared to brushed models. This design eliminates the energy loss and friction associated with carbon brushes, resulting in greater power output, less heat generation, and improved performance. The efficiency gain can reduce drilling time by up to 50%, allowing tasks to be completed faster and with less energy consumption.

Fast Drilling Performance
The drill operates at a high speed, capable of creating a standard hole in approximately 17 seconds. This rapid drilling capability helps streamline workflows, reduces job completion times, and supports higher productivity in workshops and on-site.

Strong Magnetic Suction
Featuring a pure iron double-coil base, the drill provides strong and stable adhesion to steel plates thicker than 6mm. With a suction force of up to 10000N, it remains securely in place during operation, preventing slippage and ensuring precise, safe drilling even on heavy-duty structural steel.

Extended Service Life
The brushless motor contributes to a 40% longer operational life compared to conventional drills. Without brushes to wear out or spark, the motor experiences minimal friction and degradation. This durability reduces maintenance needs, lowers long-term replacement costs, and increases equipment uptime.

Hoprio Brushless Magnetic Drill represents a meaningful advancement in drilling equipment, combining higher efficiency, faster operation, reliable magnetic suction, and extended durability. Suitable for a wide range of industrial and construction tasks, it offers a practical solution for businesses aiming to improve productivity, accuracy, and cost-effectiveness in their drilling operations.

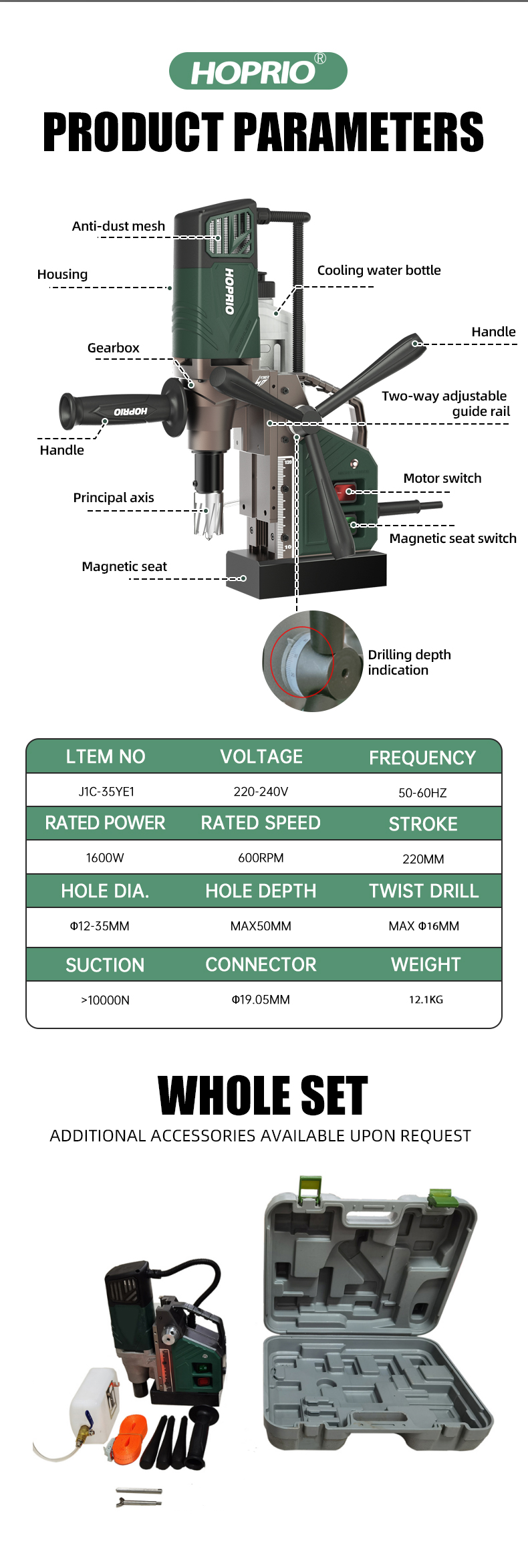

Item No. J1C-35YE1 Rated Power 1600W
Voltage 220-240V No-load Speed 600r/min
Frequency 50-60Hz Stroke 220mm
Hole Diameter ∅12mm-∅35mm Hole.Depth Max 50mm
Twist Drill Max ∅16mm Suction >10000N
Connector ∅19.05mm Weight 12.1KGS



 magneticdrill_01

 magneticdrill_10


magnetic-drill
