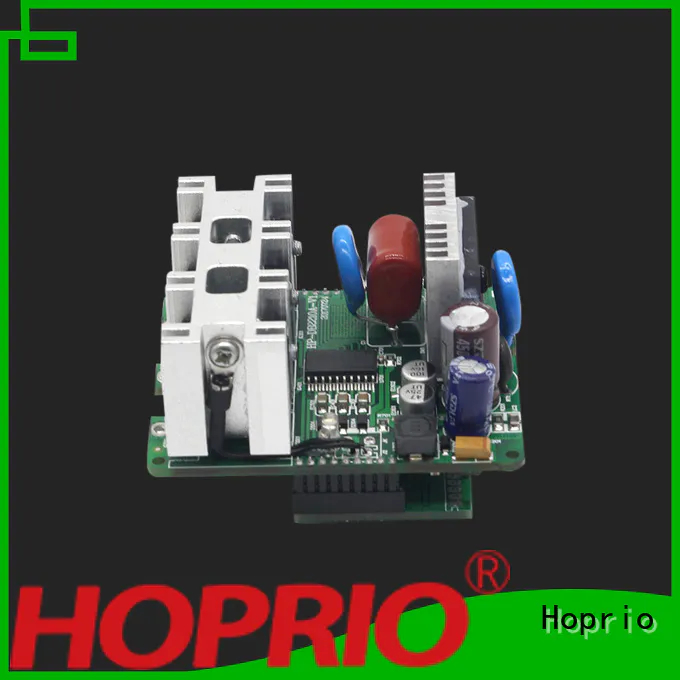

The drive board has voltage reverse protection, overcurrent protection, simple wiring and easy to use.
[drive voltage] DC 9-12v.
Working current is less than or equal to 1.2A.
[speed range] 0-100 (%)
[transphase control] yes.
[voltage reverse protection] yes.
[overcurrent protection] yes.
Note: the line of brushless motor must be pressed firmly when it is connected to the drive plate terminal, and the bad contact will be run and the chip will be burned.
There are gaps between the fixed screws on the board terminals. Please connect them to the board with thicker wires.
Public port: how to identify four line motor multimeter is the resistance of the * 1 gear, respectively, the four terminals, one of the terminals and the other three terminal resistance zui small, are equal, then the terminal is COM terminal, namely public terminal
First look at your electric car battery voltage levels, corresponding to the selected voltage controller, look at the size of the current controller previously used, such as the current is 16A-18A 350W controller, 22A-24A controller is 450W, 28A -30A controller is 500W, 31A-33A is 600W controller, 33A-35A is 800W controller, 36A-38A is the 1000W controller, 40A-43A is the 1200W controller, 50A is about 2000W controller . Such selection controller, if the original car is 350W controllers we recommend the use of bigger, so you can take advantage of the highest motor speed and power.
BRUSHLESS DC MOTOR CONTROLLERS' FEATURES Sophisticated functions for safety checks.
• Intelligence with powerful microprocessor.
• Bluetooth programming is available.
• Maximized travelling distance per battery charge.
• Extended battery life.
• Configurable 60 degree or 120 degree hall position sensors.
• Intelligent diagnostic function.
• Superior anti-interference and anti-shock performance.
• Manual cruise function
• Auto cruise function.
• Hard/soft start selection function.
• 3 speed (50%-80%-100% or other volumes) function
• EBS brake function.
• Reverse function
• Netural function.
• Forward/reverse selection function
• Anti-thieft function.
• Speed limiting function
• Low voltage & over voltage protection
• Over heated protection.
• Throttle error protection function when starting.
• Throttle error protection function when running.
BRUSHLESS DC MOTOR CONTROLLERS' FEATURES Using the intelligent MPU.
Low energy consumption in High-speed, with synchronous rectification PWM circuit.
Battery current limit function can prolong the lifespan of battery sets.
Big starting current provide high starting speed.
Superior anti-interference and anti-shock performance.
Status LED indicates different fault information, it help the users to diagnostics & maintain the controller conveniently.
With battery protection function ,it protect against the low voltage &over voltage by reducing or cutting off the battery current output.
With thermal protection function, this thermal protection &compensation circuit provides constant current limit durng iunder/over temperature condition ,so it can protect the controller and battery well.
Compatible with the 60°/120°hall sensor in both.
Throttle protection function disable the controller if throttle wires become open, also can prevent the controller operation if the electricity key is turned on while throttle is applied (For optional).
Manual cruise/auto cruise function are available(For optional).
Auto-matching with all kinds of motors.
Configurable soft/quick start mode.
Online/offline updating function available.
BRUSHLESS DC MOTOR CONTROLLERS' REGULAR FUNCTIONS Configurable over/under voltage protection function offers real-time battery current monitoring (For optional)
Single periodic current adjustment provide over voltage protecting in microsecond rates.
With thermal sensor to detecting any thermal information.
Configurable EABS brake system effect by strong/weak braking signal (For optional)
Safety reversing function, reversing speed can be set by 30% to 50% of the forwarding speed
Providing +5V powering to hall sensor with over current protecting,
Configurable Forwarding, Neutral and Reversing operations(For optional)
3 wires access of speed governing, additional supplying +5V power source
5 wires access of hall sensor connector, no hall sensor application is available for optional
Real-time battery current monitoring system make sure the output current will not excess the maximum battery working current.
OUR FACTORY:
SAMPLES:
Sample Fee: Same as the MOQ, if need to customized, the fee should discuss.
Sample Time: ready stock within 3 days after confirm to received the remittance, customized need to 35-55 days.
How to order
1. We need to know the size, quantity and material.
2. Discuss all details with you and make the sample if needed.
3. Start the mass production after getting your payment(deposit).
4. Send goods to you.
5. Receive the goods in your side.
FAQ:
1.How can we get a quotation?
Please provide the specification about the product, it’s better if you can provide picture,material or sample, so that we can give you an accurate quotation. We will send the quotation to you by E-mail or trade manager or other chat software after we confirm the details.
2.What’s the trade term and payment term?
These information we will mention in the quotation sheet. Normally we quote FOB price. Concerning the payment term, we can accept T/T (30% deposit, 70% balance before shipment ), Western Union, Wire Transfer &crash, if large amount, we also can accept L/C as payment terms.
3.May I have new sample with our LOGO for confirmation?
Yes, of course you can. But the fee is in your account. And about the MOQ for OEM or ODM, it depends on the product configuration.
4.What about the lead time?
It depends on the product and the quantity.
5.what about shipment?
Deposit is to establish trust and intention of cooperation. And we will send you the photos during production, and will provide the tracking No. to you once shipped, and you can use your forwarding agent, or if you have express account, you can arrange the shipment. But sometimes it will cheaper to used our carrier.
6.What shipping method I can choose ?
for small order, trial order, can by express or by air, DHL, UPS, TNT,FEDEX, if large order can by sea etc, 3-7 working days by express, 10-35 working days by sea. You can arrange shipment by yourself .
7.Do you have MOQ ?
Yes, the MOQ depends on the specification of guitar you want .
