An angle grinder is a versatile tool for cutting, grinding, and polishing various materials like metal, stone, and wood.
Always wear safety gear, including goggles and gloves, to protect yourself from sparks and debris when using an angle grinder.
Choose the right disc for your task; different materials require specific discs for optimal performance and safety.
Corded angle grinders provide consistent power for heavy-duty tasks, while cordless models offer portability for outdoor and remote work.
Regularly inspect your angle grinder and its attachments to ensure safe operation and effective performance.

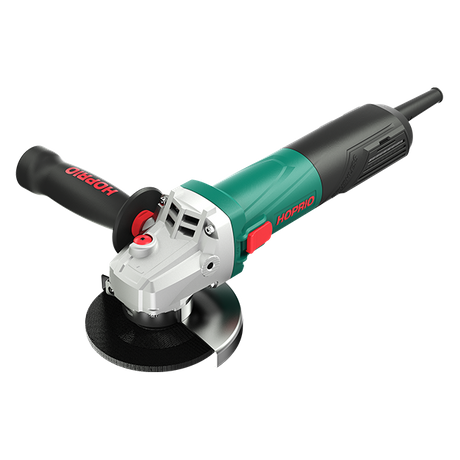

You use an angle grinder as a handheld power tool designed for cutting, grinding, and polishing. The tool features a right-angle design, which means the disc sits perpendicular to the motor. This design lets you work on surfaces from different angles with ease. You can rely on an angle grinder for tasks that require speed and precision. The tool is popular in metal fabrication, construction, and auto repair shops. You will find it useful for removing rust, shaping metal, and smoothing rough edges.
The basic structure of an angle grinder includes several key components. Each part works together to deliver high performance and safety. The table below shows the main components and their functions:
Component | Function |
|---|---|
Motor | Converts electrical energy into mechanical energy to rotate the disc at high speeds (5,000-11,000 RPM). Enables cutting, grinding, and polishing. |
Disc Guard | Protects the operator from debris and sparks, and contains fragments in case of disc breakage. Enhances safety during operations. |
Grinding Disc | Primary tool for material removal, available in various types for cutting, grinding, and shaping materials. |
Handle | Provides a secure grip and control, designed to minimize fatigue and improve maneuverability. |
Spindle Lock | Immobilizes the spindle for safe and easy removal of the grinding disc, facilitating quick changes. |
Adjustable Guard | Allows adjustment of the disc guard position for different orientations, enhancing flexibility and precision. |
Tip: Always check that the disc guard and handle are secure before you start using your angle grinder.
You can choose between two main types of angle grinders based on their power source: electric angle grinder and pneumatic angle grinder. The electric angle grinder is the most common type you will find in workshops and homes. It plugs into a standard outlet or uses a battery for cordless models. Pneumatic angle grinders use compressed air and are popular in industrial settings.
The table below compares the features of pneumatic and electric angle grinders:
Feature | Pneumatic Angle Grinders | Electric Angle Grinders |
|---|---|---|
Power Source | Compressed air | Electricity |
Power Output Consistency | Superior torque and consistent power output | May experience power dips |
Overheating | Less prone to overheating due to heat dissipation | Prone to overheating during prolonged use |
Ideal Use | Heavy-duty applications | General use, but can struggle under heavy loads |
Weight | Lighter and more compact | Heavier and bulkier |
You will notice that the electric angle grinder is heavier, but it is easier to use for most jobs. Pneumatic models are lighter and better for heavy-duty tasks. If you need a tool for general use, the electric angle grinder is a reliable choice.
When you switch on your angle grinder, the motor powers the spindle, which spins the disc at high speeds. The disc rotates at speeds ranging from 5,000 to 12,000 revolutions per minute (RPM). You can select different discs for cutting, grinding, or polishing, depending on your task. The right-angle design allows you to approach the workpiece from various directions.
The speed of the disc affects how quickly you can cut or grind materials. The table below shows typical speed zones for angle grinder discs:
Speed Zone | RPM Range | Description |
|---|---|---|
High Speed | 10,000–12,000 RPM | Ideal for general cutting, grinding, and fast rust removal. |
Lower Speed | 7,000–8,500 RPM | Common for large-format tools or optimized cordless models, prioritizing controlled torque. |
You control the angle grinder using the handle and adjust the guard for safety. The spindle lock lets you change discs quickly. You can use an electric angle grinder for most jobs, but pneumatic models work better for continuous heavy-duty use.
Note: Always wear safety goggles and gloves when operating an angle grinder. High-speed discs can throw debris and sparks.
You will find that the angle grinder is a versatile tool. You can use it for cutting metal pipes, grinding welds, or polishing surfaces. The electric angle grinder offers convenience and power for everyday tasks. If you need more torque and less overheating, consider a pneumatic model.
You can use an angle grinder for cutting material in metal fabrication and construction. This tool slices through sheet metal, mild steel, stainless steel, and hard alloys with ease. The right disc makes all the difference. For example, abrasive cutting discs work well for sheet metal, while diamond discs handle stainless steel and tough alloys. The table below shows common metals and the best cutting methods:
Metal Type | Cutting Method |
|---|---|
Sheet Metal | Abrasive cutting discs |
Mild Steel | Aluminum oxide abrasive discs |
Stainless Steel | Diamond cutting discs |
Hard Alloys | Diamond-impregnated rim discs |
Tough Materials | Carbide discs with tungsten carbide grit |
Stainless Steel Alloys | Specialized stainless steel cutting discs |
Angle grinders also cut stone, ceramic, and granite. You should always follow safety precautions when cutting. Wear safety goggles, gloves, and hearing protection. Secure your workpiece and use the correct disc for each job.
Tip: Never use an angle grinder for wood. The tool can catch and kick back, causing injury.
Grinding surfaces is one of the main uses for an angle grinder in metal fabrication. You can smooth welds, remove burrs, and shape rough edges. Choose the right disc for the job. The table below lists popular grinding discs and their features:
Product Name | Features | Applications |
|---|---|---|
DEWALT DW4523 | Aluminum oxide, thin profile | Smoothing welds, general grinding |
WORKPRO 20-Pack | Aluminum oxide, zirconia alumina | Deburring, finishing, grinding |
Makita 5 Pack | Durable aluminum oxide | Rust removal, polishing welds |
3M Cubitron II | Ceramic abrasives, high RPM rating | Polishing welds, deburring |
Benchmark Abrasives | Zirconia alumina, thin profile | Shaping hard materials, grinding |
Angle grinders are less precise than surface grinders or disc grinders, but you get speed and portability. You can use them for rough grinding surfaces and quick shaping.
You can clean metal surfaces and remove rust with an angle grinder. Wire brush attachments work best for this task. They strip paint, rust, and dirt, preparing the surface for priming or coating. Wire wheels and wire cup brushes fit most angle grinders and reach different angles. The table below shows common wire brush types and their uses:
Type of Wire Brush | Compatible Tools | Common Uses |
|---|---|---|
Wire Wheels | Angle grinder, Bench grinder, Die grinder | Removing paint, rust, weld spatter, scale; cleaning; deburring |
Wire Cup Brushes | Angle grinder, Die grinder | Cleaning from different angles, surface prep |
Wire End Brushes | Die grinder, Power drill | Precision cleaning, deburring slots |
Handheld Wire Brushes | N/A | Maintenance cleaning, prepping for welding |
Nylon Wire Brushes | N/A | Delicate cleaning, polishing |
Note: Always wear a dust mask or respirator when cleaning concrete or stone.
You can polish and finish metal surfaces with an angle grinder. Polishing pads help you achieve a mirror finish, especially in metal fabrication. XL flat felt polishing discs and wool flap drums work well for final polishing. Quick change polish plus discs reach small areas. Buffing drums cover large surfaces. Spiral sewn drums help with initial polishing stages.
Angle grinders excel at sharpening tools and finishing metal fabrication projects. You can use them for removing paint, smoothing welds, and preparing surfaces for coating.
Tip: Use polishing pads designed for your angle grinder to avoid overheating and get the best results.
Angle grinder attachments give you the flexibility to tackle many tasks. You can swap out different accessories to cut, grind, clean, or polish metal and stone. Each attachment works best for a specific job. You should always choose the right tool for your project.
A grinding wheel is the main attachment for smoothing and shaping metal. You use it to remove welds, burrs, and rough edges. Grinding wheels are thicker than cutoff wheels, which makes them ideal for heavy material removal. You can use a grinding wheel at low angles to polish large surfaces. Many grinding wheels come in different grits, so you can pick one for rough grinding or fine finishing. You may also use a sanding disc for lighter surface work or prepping metal before painting.
A cutoff wheel helps you make precise cuts in metal and stone. You use it to slice through steel bars, pipes, bolts, and sheet metal. Cutoff wheels are thinner than grinding wheels, so they cut with less resistance. You should use a cutoff wheel at a 90-degree angle for best results. The table below shows the main differences between cutoff wheels and grinding wheels:
Feature | Cut-off Wheels | Grinding Wheels |
|---|---|---|
Thickness | Thinner, designed for precise cuts | Thicker, suitable for grinding surfaces |
Application | Used for cutting at 90-degree angles | Used for grinding large workpieces at low angles |
Material Removal | Cuts small material workpieces | Smooths and polishes metal surfaces |
Side Cutting | Not preferable due to thin design | Can handle side grinding due to thickness |
Resistance to Sideload | Cannot resist heavy sideload | Can resist powerful sideload |
You can use a cutoff wheel for metal, soft to medium-hard non-ferrous metals like copper, aluminum, and brass, and various steel samples. Always check that your cutoff wheel matches the material you want to cut.
Wire brushes and cups help you clean and prepare surfaces. You can use them to remove rust, paint, and debris from metal. Wire brushes work well for cleaning weld seams, deburring edges, and stripping paint from large panels. You can also use wire cups for cleaning weld spatter in narrow joints or removing rust from small components. These attachments are versatile and make surface preparation easy.
Cleaning weld seams and spatter in narrow joints
Deburring the edges of cut metal pieces
Rust removal from small components or intricate shapes
Stripping paint and heavy coatings
Cleaning weld scale from extensive areas
Polishing pads let you finish metal surfaces to a smooth shine. You can use them after grinding or sanding to get a mirror-like finish. Many polishing pads work with flap wheels for extra smoothness. You may use a sanding disc for prepping surfaces before polishing. Flap wheels combine abrasive flaps and a wheel shape, so you can blend, finish, and polish in one step. You should pick a polishing pad that matches your angle grinder for best results.
Tip: Always wear safety gear when changing angle grinder attachments. Check that each attachment is secure before you start your work.
When you compare corded and cordless angle grinders, you notice clear differences in power output and speed. Corded angle grinders deliver consistent power between 500W and 2500W, reaching speeds up to 12,000 RPM. You can rely on them for heavy-duty tasks because they maintain speed under load. Cordless angle grinders provide power from 800W to 1500W, with a maximum speed of 9,000 RPM. Their performance can drop as the battery charge decreases, which affects efficiency during demanding jobs.
Type | Power Output (W) | Maximum Speed (RPM) | Performance Notes |
|---|---|---|---|
Corded | 500W - 2500W | 12,000 | Maintains speed under load, high efficiency |
Cordless | 800W - 1500W | 9,000 | Performance declines with battery charge |
Cordless angle grinders operate at voltages between 18V and 36V. You get about 20 to 45 minutes of runtime per charge. Light-duty tasks may last longer, but heavy grinding drains the battery quickly. You may need to pause for recharging or swapping batteries, which can slow down your workflow.
Cordless angle grinders give you freedom to work anywhere. You do not need to stay near a power outlet, which makes them ideal for outdoor projects or remote locations. You avoid tangled cords, so you move easily and set up faster. Their lightweight design helps reduce fatigue during long tasks. You also minimize hazards from wires, creating a safer workspace. Cordless models let you work in tight spaces, such as automotive repairs or overhead grinding.
Work anywhere without power access
Faster setup and workflow
Enhanced mobility for outdoor or remote tasks
Reduced fatigue due to lightweight design
Safer work environment with fewer tripping hazards
Easier detailed work in restricted spaces
You should consider several factors when choosing between a corded angle grinder and a cordless angle grinder. Corded models offer consistent power and suit prolonged, heavy-duty applications. Cordless models feature variable speed controls, giving you flexibility for different tasks. Corded grinders usually cost less upfront, while cordless models require extra investment in batteries and chargers. Cordless tools may face battery degradation over time, while corded tools can have issues with frayed cords. Cordless models can be heavier due to batteries, which affects maneuverability. Safety risks differ, with cords posing tripping hazards and batteries overheating during extended use. Corded grinders need less maintenance, while cordless models require regular battery care.
Tip: For long projects, choose a cordless angle grinder with long battery life and fast charging to minimize downtime.
You may wonder how an angle grinder compares to a bench grinder for metalworking. An angle grinder gives you portability and versatility. You can move freely and tackle jobs in different locations. A bench grinder stays in one place, so you work at a fixed station. The angle grinder machine spins at higher speeds, reaching up to 10,000 RPM. A bench grinder runs slower, usually between 3,000 and 3,600 RPM. You use an angle grinder for cutting, grinding, polishing, and sanding. A bench grinder focuses on sharpening and polishing with high precision. You need more control with an angle grinder, which can cause fatigue. A bench grinder feels stable and works well for repetitive tasks.
Feature | Angle Grinder | Bench Grinder |
|---|---|---|
Portability | Handheld, portable for various tasks | Stationary, limited mobility |
Speed and Power | High-speed (up to 10,000 RPM) | Slower speed (3,000 to 3,600 RPM) |
Versatility | Can cut, grind, polish, sand | Limited to sharpening and polishing |
Accuracy | Less precision for delicate tasks | High precision for fine detail work |
Ease of Use | Requires control and can cause fatigue | Easier for repetitive tasks, stable |
Tip: Use an angle grinder stand for added stability when you need more control during grinding.
You may use a die grinder for precision work. The angle grinder machine handles heavy-duty tasks, while the die grinder excels at detailed carving and smoothing. You choose a die grinder for electronics modification or intricate designs. The angle grinder cordless model works well for quick shaping and rust removal. You can see the differences in the table below:
Tool Type | Applications | Key Features |
|---|---|---|
Die Grinder | Precision work in metalworking, detailed carving in woodworking, electronics modification | Ideal for smoothing welds, cleaning machined edges, and intricate designs |
Angle Grinder | Heavy-duty tasks in metalworking, construction, and rough woodworking | Excellent for cutting metal, rust removal, and shaping wood quickly |
Note: Angle grinder attachments give you more options for heavy-duty jobs, while die grinders focus on fine detail.
You may use a reciprocating saw for demolition. The angle grinder machine offers versatility for cutting, grinding, and polishing. The reciprocating saw makes quick, precise cuts through many materials. You use an angle grinder for metalworking and construction, but it does not match the precision of a reciprocating saw in demolition work.
Tool | Cutting Ability | Best Use Case |
|---|---|---|
Reciprocating Saw | Quick, precise cuts through various materials | Ideal for demolition tasks |
Angle Grinder | Versatile, can cut, grind, and polish | More suited for metalworking and construction, less precision for demolition |
Always wear safety glasses, gloves, and a respirator when using any power tool. Check your angle grinder attachments and maintain your angle grinder cordless model for safe operation.
You have learned that an angle grinder is a powerful tool for grinding, cutting, and polishing metal. You can switch discs to handle many tasks, from removing rust to shaping parts. Always wear safety gear and inspect your tool before use.
Remember to choose the right disc, keep guards in place, and maintain good balance.
If you want to learn more, check guides on safe operation and proper disc selection.
Wear eye and hearing protection.
Use two hands for control.
Inspect discs before each use.
You should always wear safety goggles, gloves, and hearing protection. A dust mask protects your lungs from debris. Wear long sleeves and avoid loose clothing. Safety gear helps you prevent injuries from sparks and flying fragments.
You should not use an angle grinder machine on wood. The high speed can cause the disc to catch and kick back. This makes it unsafe. Use tools designed for wood instead.
Unplug your angle grinder or remove the battery from your angle grinder cordless model. Press the spindle lock. Use the provided wrench to loosen the disc. Replace the attachment, tighten it, and check that it is secure before use.
An angle grinder stand holds your angle grinder machine steady. You use it for precise cutting or grinding. The stand improves control and safety, especially when you need to make straight cuts in metal or stone.
A fully charged battery in an angle grinder cordless model usually lasts 20 to 45 minutes. The exact time depends on the task and battery size. Heavy grinding drains the battery faster than light polishing.
