Why Permanent Magnet Brushless Motors with Intelligent Protection Are Replacing Traditional Series-Wound Motors in Industrial Applications

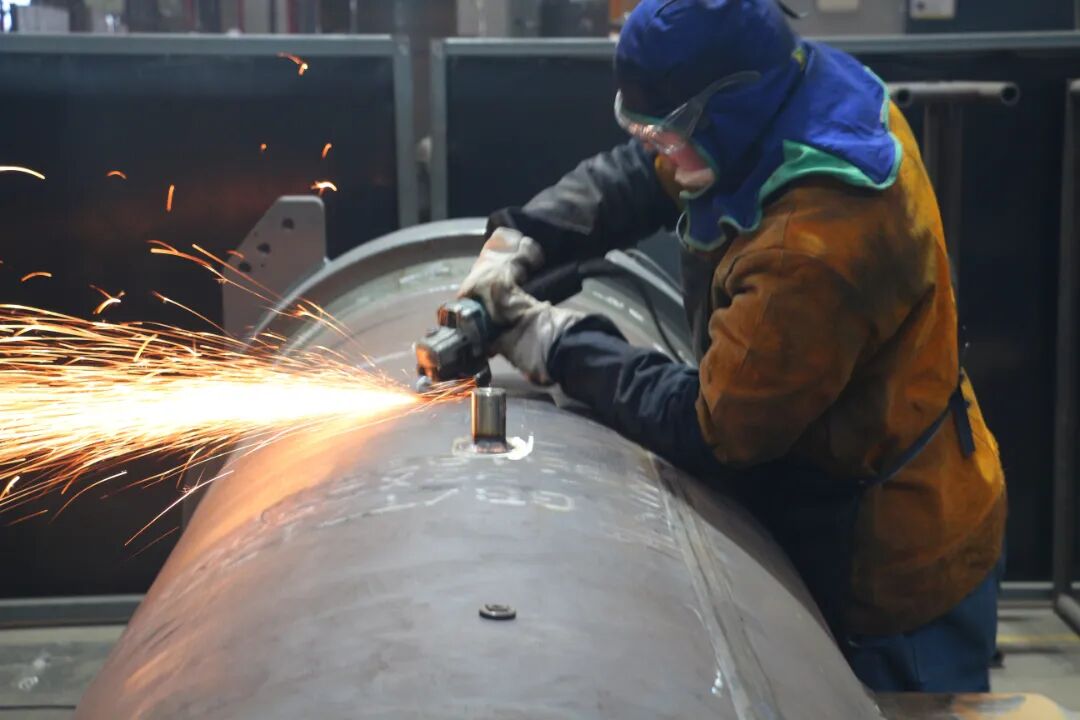

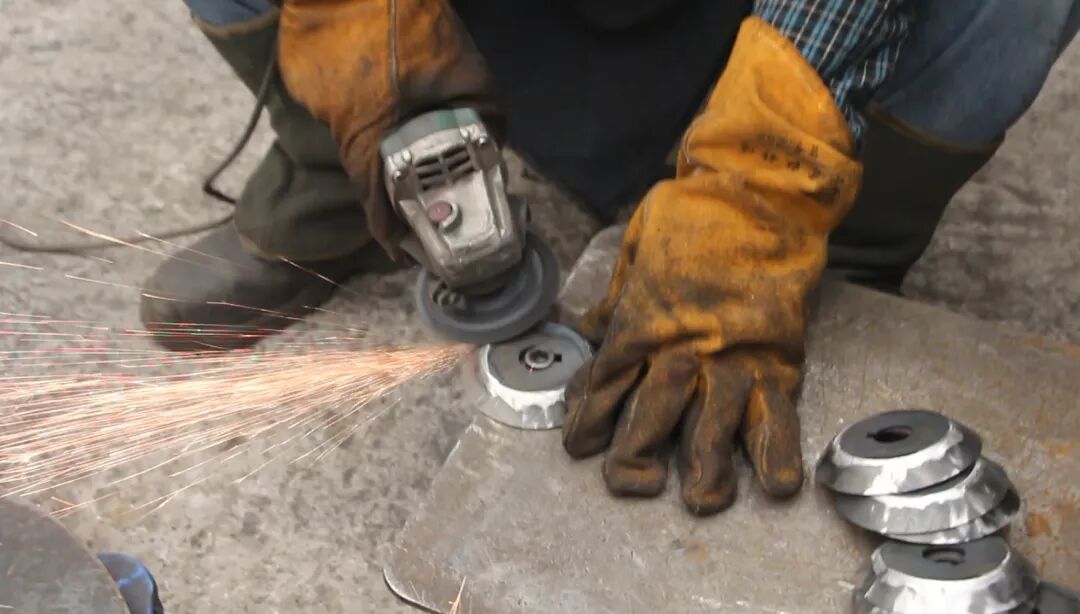

In metal fabrication, shipbuilding, steel structure construction, and similar heavy industries, the 100mm (4") angle grinder is one of the most frequently used power tools. However, traditional series-wound (brushed) motor angle grinders have long suffered from rotor wear, frequent maintenance, and overload burnout—issues that directly impact operational efficiency and total cost of ownership.

The Three Core Pain Points of Traditional Brushed Motors

User feedback consistently points to three major problems with brushed motor angle grinders.

Short service life. Series-wound motors rely on carbon brushes making physical contact with the commutator to transfer current. High-speed friction means brushes must be replaced every 300 to 500 hours of operation. The rotor windings are also prone to burnout from overheating. In contrast, brushless motors typically last 5 to 6 times longer—some estimates range up to 10 times longer.

Frequent overload burnout. When cutting hard materials or applying excessive pressure, brushed motors cannot maintain constant output. Temperatures rise rapidly until the motor fails. Brushless motors, on the other hand, achieve 85% to 90% energy conversion efficiency, compared to just 70% to 75% for brushed motors.

Excessive weight. Traditional models often weigh over 2 kg, causing noticeable arm fatigue during extended shifts. Brushless motors offer higher power density, reducing motor size by over 30% for the same output power.

Why Permanent Magnet Brushless Motors Solve These Problems

Permanent magnet brushless motors use electronic commutation to replace mechanical commutation, eliminating carbon brush wear at the source. The advantages are clear in three areas.

Maintenance free operation. With no carbon brushes to replace, brushless motors eliminate the most frequent maintenance task. The service life of the entire tool can reach 3 to 5 times that of traditional motors.

Overload protection. Paired with an intelligent controller that monitors load in real time, brushless motors automatically adjust output when overloaded, preventing motor damage.

Lightweight design. Higher energy conversion efficiency allows the motor to be more compact. The S1M-100YE series, for example, features a slim 170mm body and weighs just 1.26 to 1.5 kg.

Real World Performance: The S1M-100YE Series

The S1M-100 series is equipped with self-developed capacitor-free, sensorless frequency conversion control technology, delivering stable output even under overload conditions. Key specifications include:

Rated power: 1050W

Peak power: 1900W

Rated speed: 12,000 RPM

These specifications meet the requirements of most industrial grinding applications. Additionally, all HOPRIO brushless tools are equipped with four intelligent safety systems:

Soft start – prevents instantaneous high current impact

Overload protection – reduces power or shuts down when overloaded

Over temperature protection – real time temperature monitoring with automatic cutoff

Power off protection – prevents automatic restart after unexpected power loss

In demanding environments such as shipyards and steel fabrication plants, the failure rate of HOPRIO brushless tools is below 1%—significantly better than the industry average.

Application Specific Selection Guide

Different materials require different grinding speeds. When working with softer metals like stainless steel or aluminum, excessive speed causes rapid disc glazing. When working with cast iron or carbon steel, high speed cutting is required. Industrial users selecting a 100mm angle grinder should consider the following principles:

For heavy duty applications (6+ hours per day): Prioritize permanent magnet brushless motor solutions, with attention to overload protection and heat dissipation. Choose models with rated power above 1000W and intelligent protection systems.

For multi material processing: Choose variable speed models with constant power and constant speed functionality to avoid speed fluctuations that can damage the motor.

For high dust environments: Ensure the tool is equipped with a stainless steel dust screen that supports quick disassembly and cleaning.

For long term cost considerations: Calculate total cost of ownership (purchase price + maintenance + consumables) rather than focusing solely on initial price.

From a technology development perspective, variable frequency brushless technology has become the mainstream direction for industrial grade power tools. For industrial users seeking equipment durability and operational efficiency, choosing a 100mm angle grinder equipped with a permanent magnet brushless motor, intelligent protection systems, and proven performance in large scale enterprise applications is a rational decision that balances performance and cost.

In procurement decisions, evaluating technical specifications, protection features, and market reputation together will help you select an industrial grade tool that truly "lasts longer, requires fewer repairs, and saves more."
