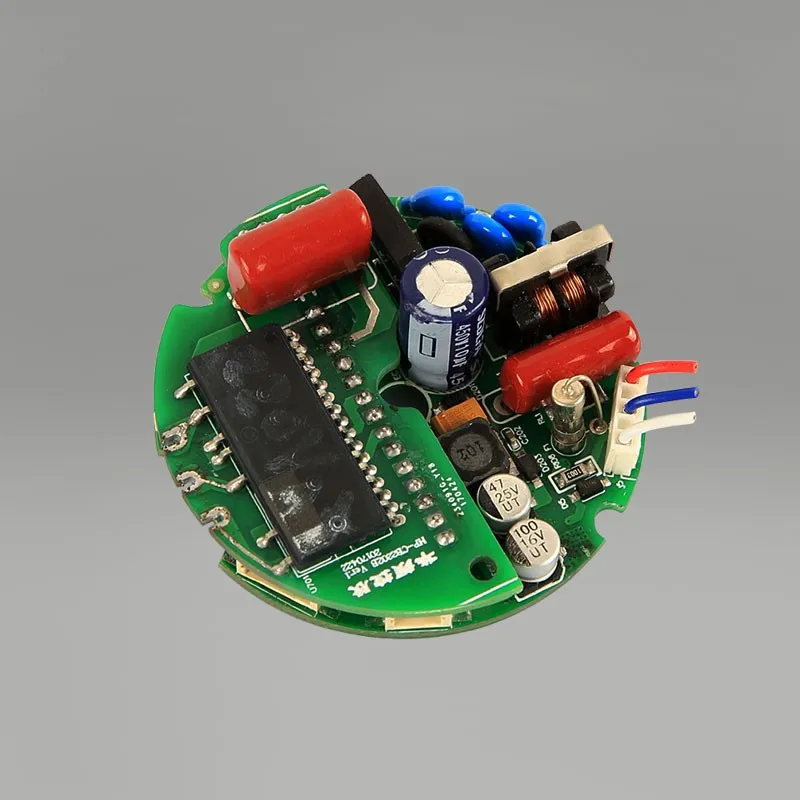

Custom 220V 200W BLDC motor controller for hair dryer

这里可以自定义设置
Custom 220V 200W BLDC motor controller for hair dryer
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
hoprio
Model Number:
HP-CB2202
Motor Type:
DC MOTOR
Voltage:
220V
Product application:
Hair Dryer
Name:
200W brushless dc motor
sample time:
7 days
Rated Power:
120W~10KW
speed:
19000rpm
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Product Features

Main Features

1. Input 220/115V, out put 310/156V input.
2. Power inverter+Motor contoller, smallest pcb
3.Patent HoprioSPIN chip inside
4.No big capacitor
5.No hall connection
6.Large load, high speed
7.Quick start
8.Compatible with engine generators

HoprioSPIN Technolog
Matching Motors

Size:34X30mm                                           Speed: 18000 rpm
Import: 310v/104w                                      Torq:0.045 N.m
Efficiency:82%

Size:40X10mm                               Speed: 19000 rpm
Import: 310v/90w                             Torq:0.035 N.m
Efficiency:78%

Typical Applications

Hair Drier with Hoprio Motor in a Crowfunding Project

Our High Speed BLDC motor is used in this hair drier, and this hair drier
was lunched crowfunding on jd.com, which is one of the biggest B2C markets.

Packing & Delivery

Packaging Details
Polyfoam or carton seperator inside, strong export carton box outside, with pallet
Delivery Time
Within 45 days for first order, 30 days for repeat order

About US

Hoprio, born for brushless motors.

Hoprio BLDC motors are robust, able to adapt to voltage change, have large load, swift adaptation to acceleration changes, long life and free maintenance. We could produce high voltage (input 310V), high speed (100,000 rpm) BLDC motors.

Semi-Automatic PCB Assembly Machine.

Motor Assembly Lines.

Internal Meeting

FAQ

1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test. But we do not pay the delivery cost. More info, you can also consult it.


2. Q: What’s the delivery time?
A: Sample order needs 15-25 days. Formal order needs 25-45 days.



3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
Trade assuranse on Alibaba is also available.


4. Q: What's your warranty terms?
A: Frame: 36 months Motor: 12 months General battery: 12 months Battery: 18 months other related parts: 12 months


5. Q: Do you have the products in stock?
A: Yes, we always keep some general ones in stock.


6. Q: Can I mix different models in one container?
A: Yes, it is ok. Please confirm the model before ordering.


7. Q: How does your factory do regarding the quality control?
A: Our company is alibaba’s Gold supplier. Certifications as you need. Every product will be fully assembled and carefully tested before packing and shipping. Information about production will be sent to you when producing.


Related Products

Model: HP-DB2201

Max output :2000w

Size:82x70X43mm

Model: HP-DB2202

Max Output: 3000W

Size:90x70X41mm

Model: HP-DB2203
Max Output: 1500W
Size:118x44X39mm


Model: HP-DB2204
Max Output: 1000W
Size:105x45x36mm

Model: HP-DB2205
Max Output: 3000W
Size:90x90X54mm

Model: HP-CB2207
Max Output: 3000W
Size:90x90X54mm

Model: HP-CB2209
Max Output: 400W
Size:73X39x27mm

Model: HP-DB2210
Max Output: 1000W
Size:65X56X34mm

Model: HP-DB2212
Max Output: 4000W
Size:108X85X54mm

Model: HP-CB2202
Max Output: 50W
Size:φ40mm

Model: HP-CB2208
Max Output: 120W
Size:φ58mm

Model: HP-DB2212
Max Output: 4000W
Size: 108X85x54mm

The integrity, strength and quality products of Hoprio group is recognized by the industry. Hoprio group has a good team with wisdom and professional experience.
