220V20K600W bldc motor OEM brushless electric motor for micro electric tool

这里可以自定义设置
220V20K600W bldc motor OEM brushless electric motor for micro electric tool
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hoprio
Model Number:
HPBL4830-220V20K500W
Voltage(V):
220V
Output Power:
610w
Usage:
Home Appliance, Electric tool
Certification:
CCC, ce, RoHS, UL
Type:
Micro Motor
Torque:
0.24
Construction:
Permanent Magnet
Commutation:
Brushless
Protect Feature:
Drip-proof
Speed(RPM):
20000
Continuous Current(A):
4A
Efficiency:
IE 4
Motor type:
BLDC brushless motor
Application:
Home Applicance and electric tool
bldc motor for electric vehicle:
Brushless motor
brand:
Hoprio
sample time:
8 days
Size:
34*30mm
motor bldc:
motor bldc
Color:
Silvery White
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month bldc motor for electric vehicle
Product Description
Product Name
Hoprio Brushless DC motor
Model
HPBL4830-220V20K500W
Nominal voltage
230V
Rated current
4
input power
610W
Output power
500W
Rated speed
20000 r/min
Rated torque
0.24N.m
Insulation Class
F
Used
Home Appliance ,Sander,Electric tool ,

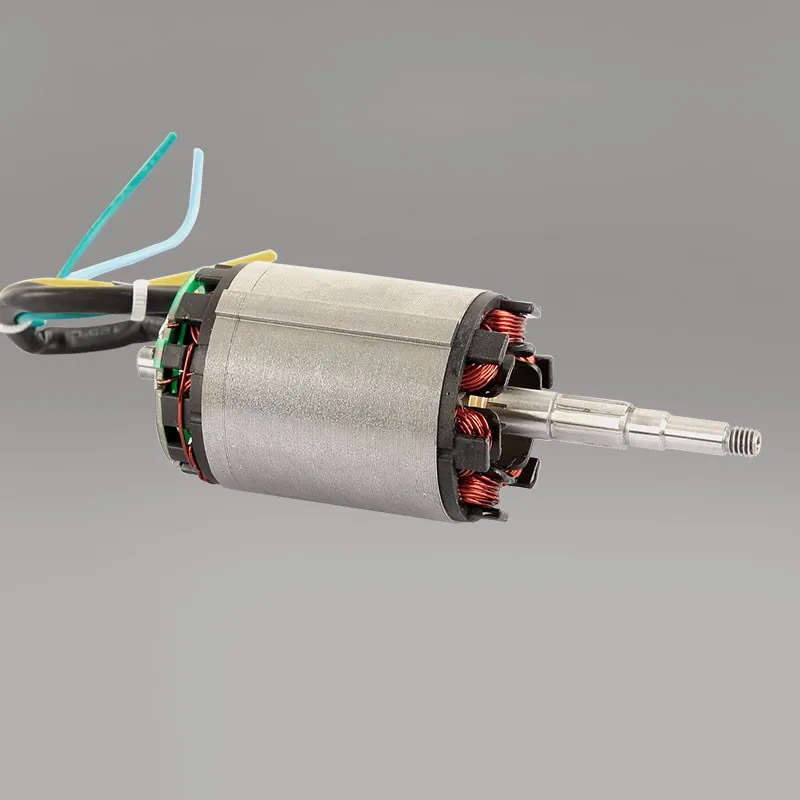

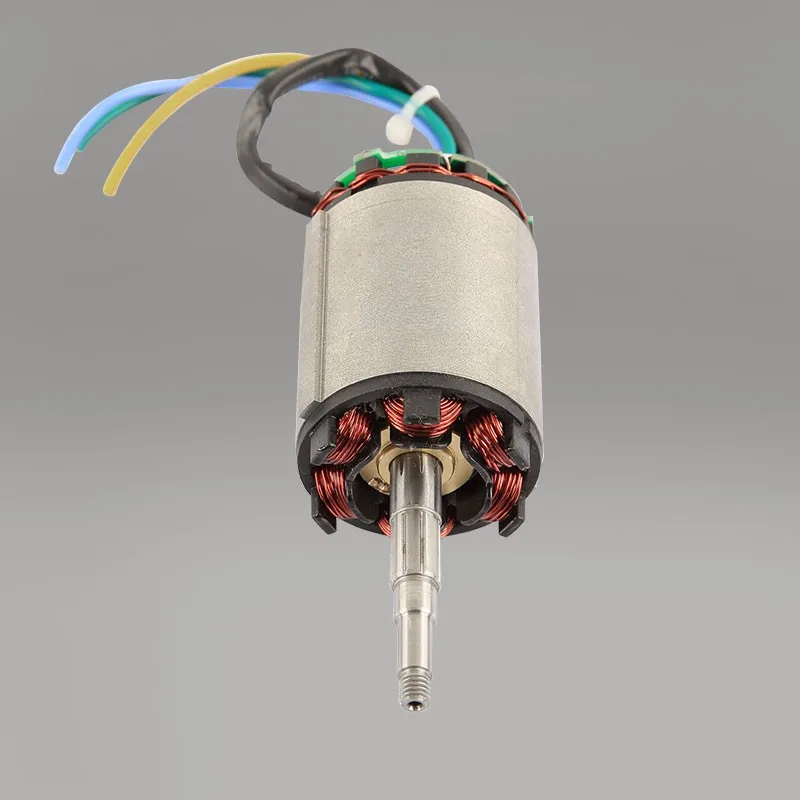

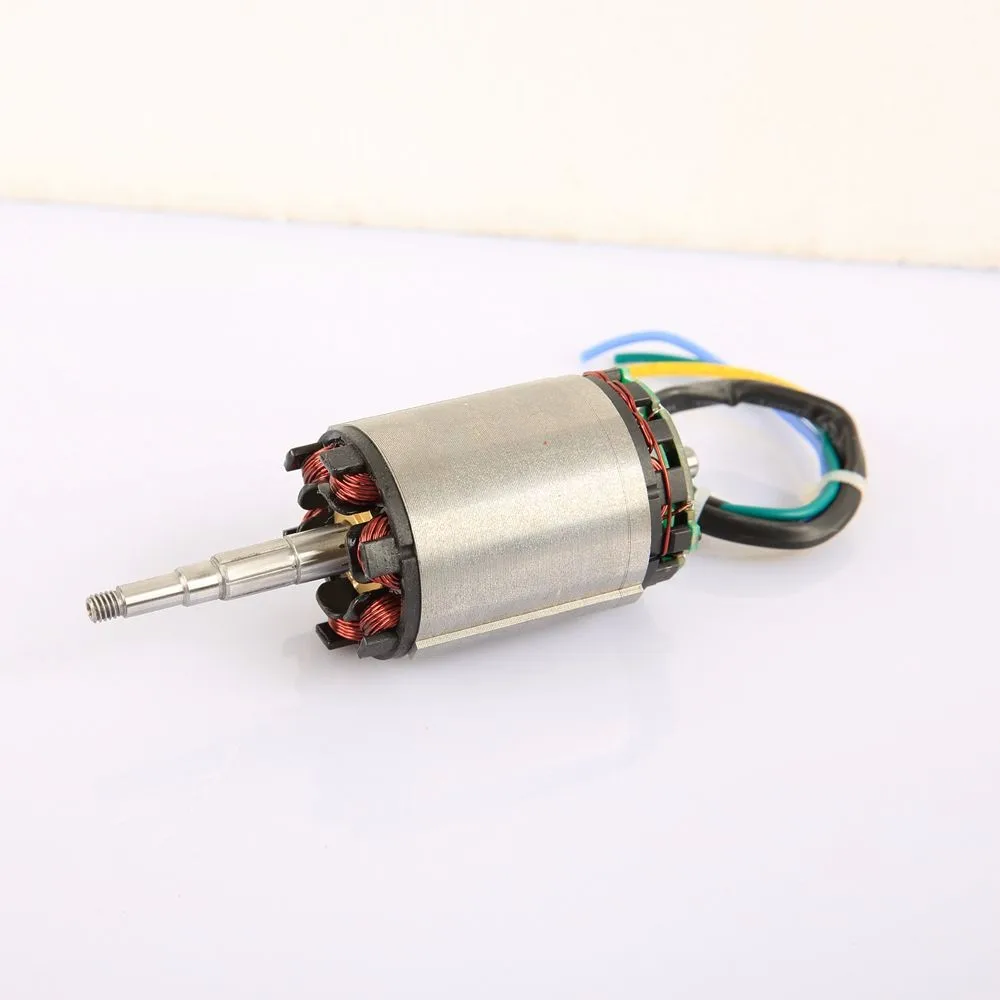

Products Show
Typical Applications



Typical Applications   postol drill


Our High Speed BLDC motor is used in this postol drill   and this tool was lunched crowfunding on jd.com ,which is one of the biggest B2C market

Matching Controller



HoprioSPIN chip inside

Inpu1200W, Output1000W, Contious current3.7A
Forced air cool
Over heat protection, over current protection, over load protection,over heat protection
Suit for 310v input, <=120W BLDC motors

Our Company

Factory

Workshop





HoprioSPIN Techolog
Packing & Delivery

Packing Details  : In accordance with your requirements

Delivery Details : about 25 days after you confirm the sample and pay the deposit




By Express ,Air or Sea

1.For normal products, we suggest to ship via EMS/UPS/DHL/FEDEX/TNT Express, we will choose the economic one for you depends on the different discount.

2.For Bulk qtys order, we will choose shipping via Air or by sea depends on the final volume and weight.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory,professional produce brushless motor and controller.

Q: How long is your delivery time?

A: Generally it is about 10 days if the goods are in stock. or it is 20-28 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: T/T  make order pay 30% deposit  in advance. balance before shippment.

If you have another question, pls feel free to contact us as below:

Q:Do you offer ODM service ?

A: Yes. We can custom design for any specific application.

This product will fit perfectly into any room or space with its flexible design and style, making a compliment to the surroundings. There is a multitude of benefits when manufacturers use this product to upgrade production, such as increased productivity and lowered labor costs.
