220V 3000W Big Power Hand Dryer Brushless Motor No Haller Sensor Driver Controller-Hoprio

Overview

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: HOPRIO

Model Number:: HP-DB2207

Voltage:: AC220V

Continual Current:: 18A

Frequency:: 50HZ

Input power:: 4000W

Output power:: 3200W

Work temperature:: -20℃-55℃

efficiency:: 80%

Weight:: 147G

Size:: 83*76*43mm

Application:: brushless dc motor

Packaging & Delivery

Selling Units:: Single item

Single package size:: 83X76X43 cm

Single gross weight:: 0.200 kg

Package Type:: 1 pc per box

Picture Example:

Lead Time :

Quantity(Pieces)	1 - 100	>100
Est. Time(days)	12	To be negotiated

Product Description

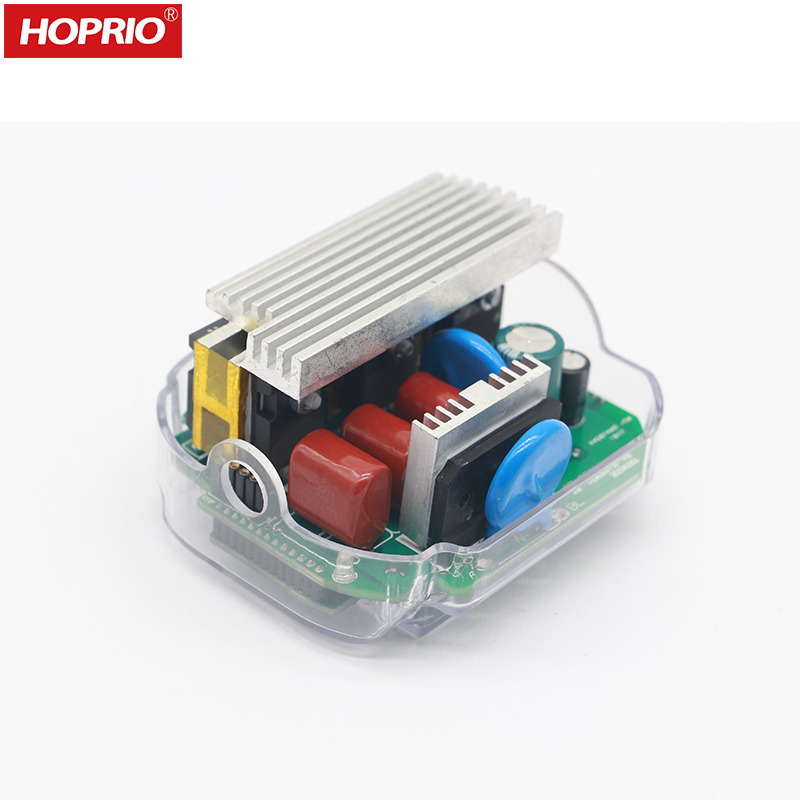

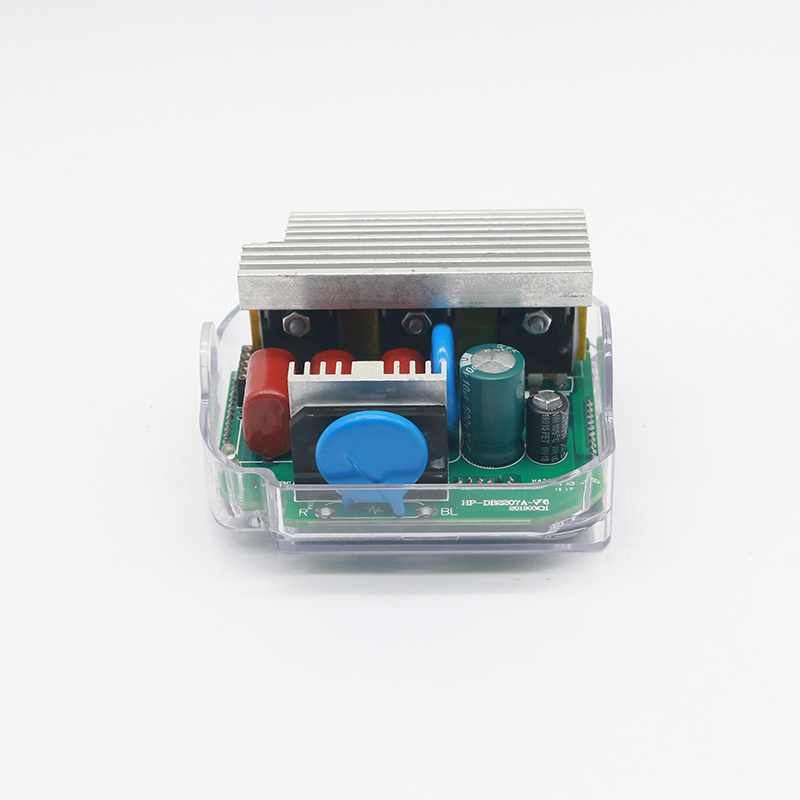

HOPRIO Brushless Motor Controller

Item No.:	HP-DB2207
Voltage	AC220V±5%
Frequency	50HZ
Input Power	4000W
Output Power	3200W
Continual Current	18A
Haller Sensor	no haller sensor
Size	*837643mm*
Weight	147g
Function	undervoltage protection,overload profection,short circuit protection,over current protection

Application

HP-DB2207

Application for hand dryer

1: 220VAC

2:3200W big power IGBT driver

3:matching brushless motor

4:no haller sensor ,close loop ,ensures stability .

5:No-large capactitor

Matching Brsuhelss Motor

HPBL7250

1:Voltage: 220VAC

2:No-load Speed: 31000rpm/min

3:Rated Speed: 25000rpm/min

4:Rated Input power:2500W

5:Rated Output Power:2000W

6:Max Short Time Input Power:4000W

HPBL9450

1:Voltage: 220VAC

2:No-load Speed: 25000rpm/min
3:Rated Speed: 19000rpm/min
4:Rated Input power:3200W
5:Rated Output Power:2500W
6:Max Short Time Input Power:4500W

Related Products

Cusromers & Exhibition

Company Introduction

Hoprio is a group company ,specialized in designing ,developing,producing brushless motor and controller ,have more than 4 years experience .

we are absorbed in high voltage ,high speed brushless motor and controller ,now we had develop our own brushless power tools ,selling all over the world .

Our group have more than 400 empolyees ,have about 80 engineers .

we can help you customize and OEM /ODM

welcome to visit our company ( Jiangsu Province,China )

I am online 24H

if you want know more information ,please e-mail me immediately , you can also tell me your requirements ,we can recommend the suitable model to you .
